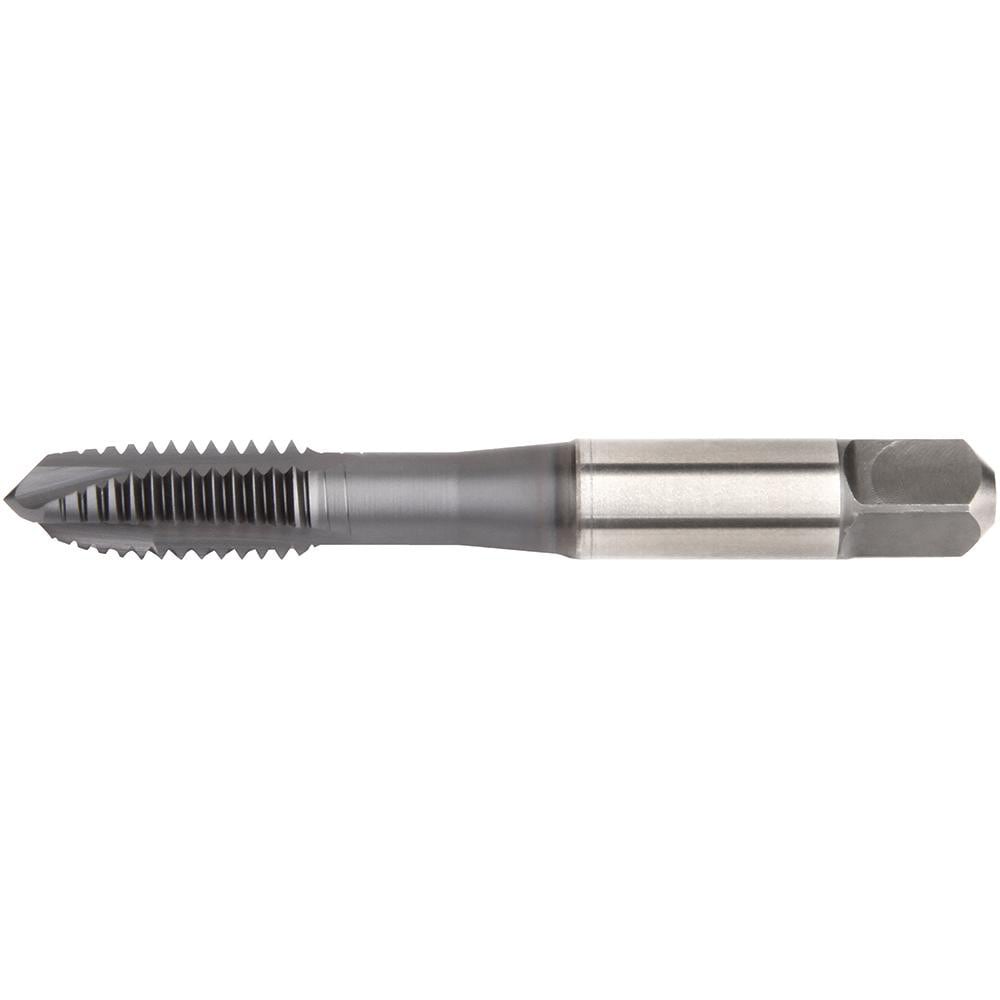

Brand: Widia / Part #: 5631500
Item #: 94002680
Brand: Widia
Model #: 5631500
Product Specifications
| Thread Size (Inch) | #6-32 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H4 |
| Class Of Fit | H4 |
| Coating/Finish | Black Oxide |
| Threads per Inch | 32 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.7100 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Thread Length (Decimal Inch) | 0.3800 |
| Overall Length (Decimal Inch) | 1.9900 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1080 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
