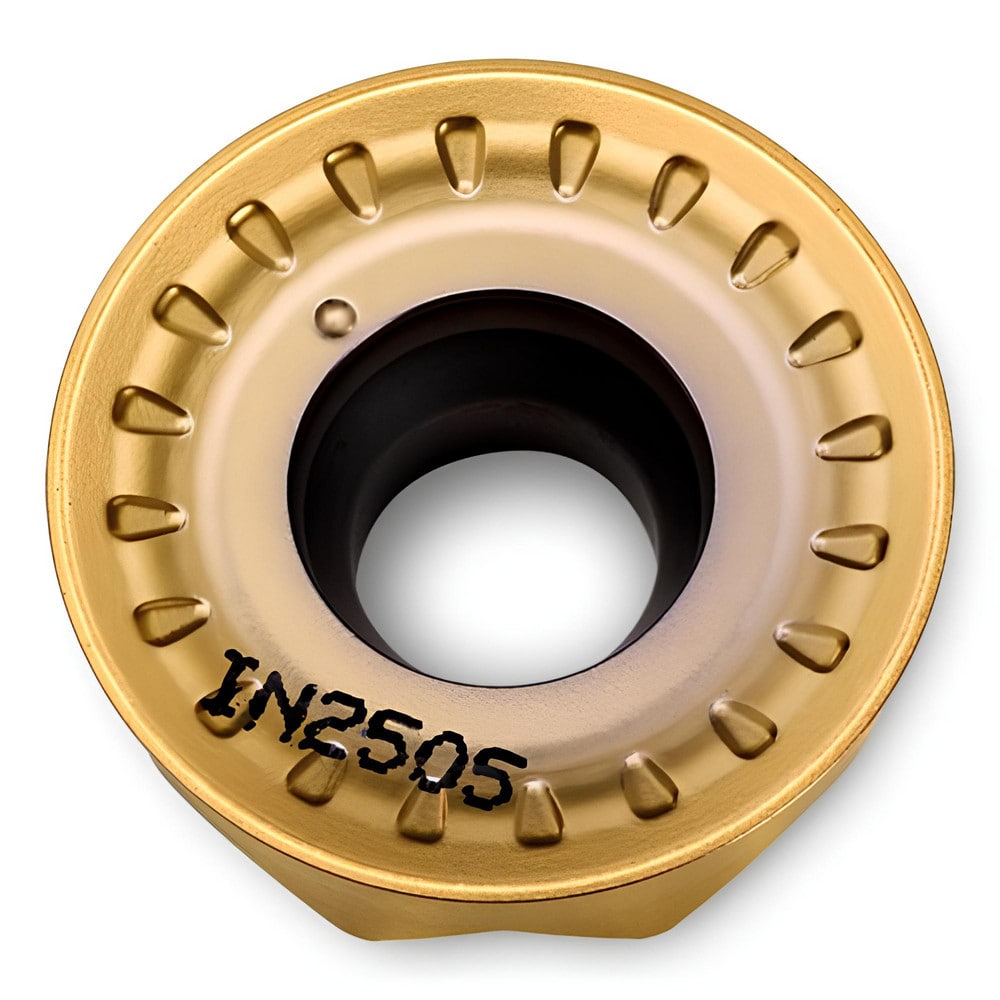

Brand: Ingersoll Cutting Tools / Part #: 6173442
Item #: 11126364
Brand: Ingersoll Cutting Tools
Model #: 6173442
Product Specifications
| Insert Style | RJLT |
| Insert Size Code | 1907 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Length (Inch) | 3/4 |
| Inscribed Circle (Inch) | 3/4 |
| Corner Radius (Inch) | 3/8 |
| Insert Hand | Neutral |
| Series | RJLT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3752 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | RJLT1907MOTN |
| Manufacturers Catalog Number | RJLT1907MOTN IN2505 |
| Cutter Series Compatibility | 1A7M |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Round |
| Length of Cut (mm) | 9.5300 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2750 |
| Multi-Use Tool | No |
