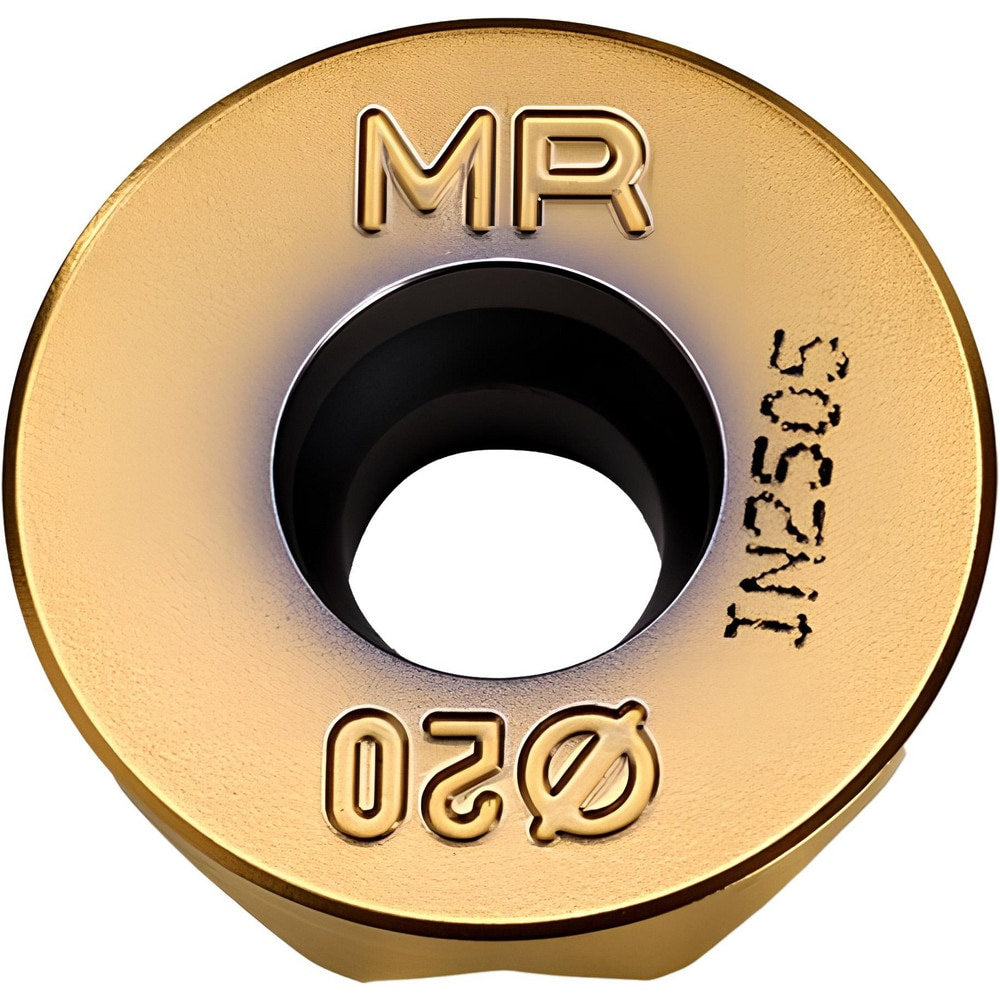

Brand: Ingersoll Cutting Tools / Part #: 6115461
Item #: 67302257
Brand: Ingersoll Cutting Tools
Model #: 6115461
Product Specifications
| Insert Style | RJLW |
| Insert Size Code | 2007 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (mm) | 20.00 |
| Corner Radius (mm) | 10.00 |
| Insert Hand | Neutral |
| Series | RJLW |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 10.00 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | RJLW2007MOTN |
| Manufacturers Catalog Number | RJLW2007MOTN IN2505 |
| Cutter Series Compatibility | 1A7M |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Round |
| Length of Cut (mm) | 10.0000 |
| Insert Holding Method | Screw |
| Thickness (mm) | 7.0000 |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Length | 20.00 |
| Width (Mm - 2 Decimals) | 20.00 |
| Multi-Use Tool | No |
