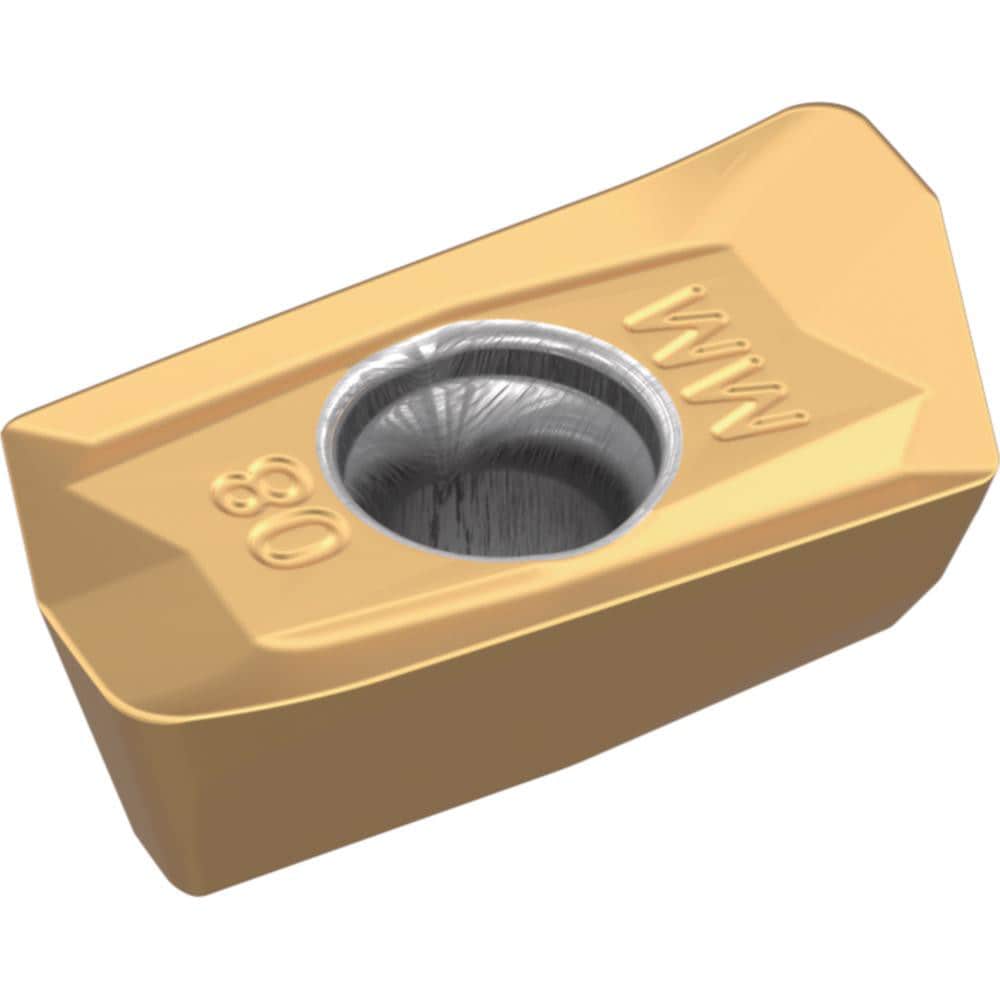

Brand: Widia / Part #: 5980399

Brand: Widia / Part #: 5980399


Item #: 94484557
Brand: Widia
Model #: 5980399

Product Specifications

Insert Style XDPT
Insert Size Code 1104
Insert Size 11
Insert Material Carbide
Manufacturer Grade WP25PM
Length (Inch) 17/32
Inscribed Circle (Decimal Inch) 0.2733
Corner Radius (Decimal Inch) 0.0787
Corner Radius (Inch) 5/64
Insert Hand Right Hand
Relief Angle 15.000
Series VSM11
Coating Process PVD
Hole Diameter (Mm) ( - 0 Decimals) 3.0000
Hole Diameter (Decimal Inch) 0.1181
Maximum Depth of Cut (Decimal Inch) 0.4628
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Secondary Workpiece Material Hard Material; Cast Iron
Secondary Workpiece Material Code H; K
Ansi Code XDPT1105SRMM
Iso Code XDPT110420PDSRMM
Manufacturers Catalog Number XDPT1105SRMM
Cutter Series Compatibility VSM11 XDPT
Chip Breaker MM
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Parallelogram
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish Al2O3
Included Angle Degree 75
Width (Decimal Inch - 4 Decimals) 0.2733
Thickness (Decimal Inch - 4 Decimals) 0.1628
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.5319
$ 13.06
