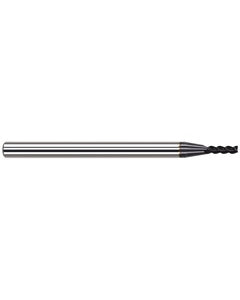

3 mm Cutting Dia. × 4 mm Shank Size × 9 mm LOC × 50 mm OAL, 3 Flute, Carbide, AlTiN Nano, 0.5 mm Corner Radius End Mill
Item #: GE90842557C6
Brand: Harvey Tool
Model #: 842557-C6
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| Applicable Material | | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 9 mm |
| Length Group | 3D |
| Overall Length (OAL) | 50 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN Nano |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Shank Size (SS) | 4 mm |
| Flute Helix Angle (FHA) | 34 Degrees |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.5 mm |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius |
| Single / Double End | Single End |
| Usable Length (LU) | 9 mm |
