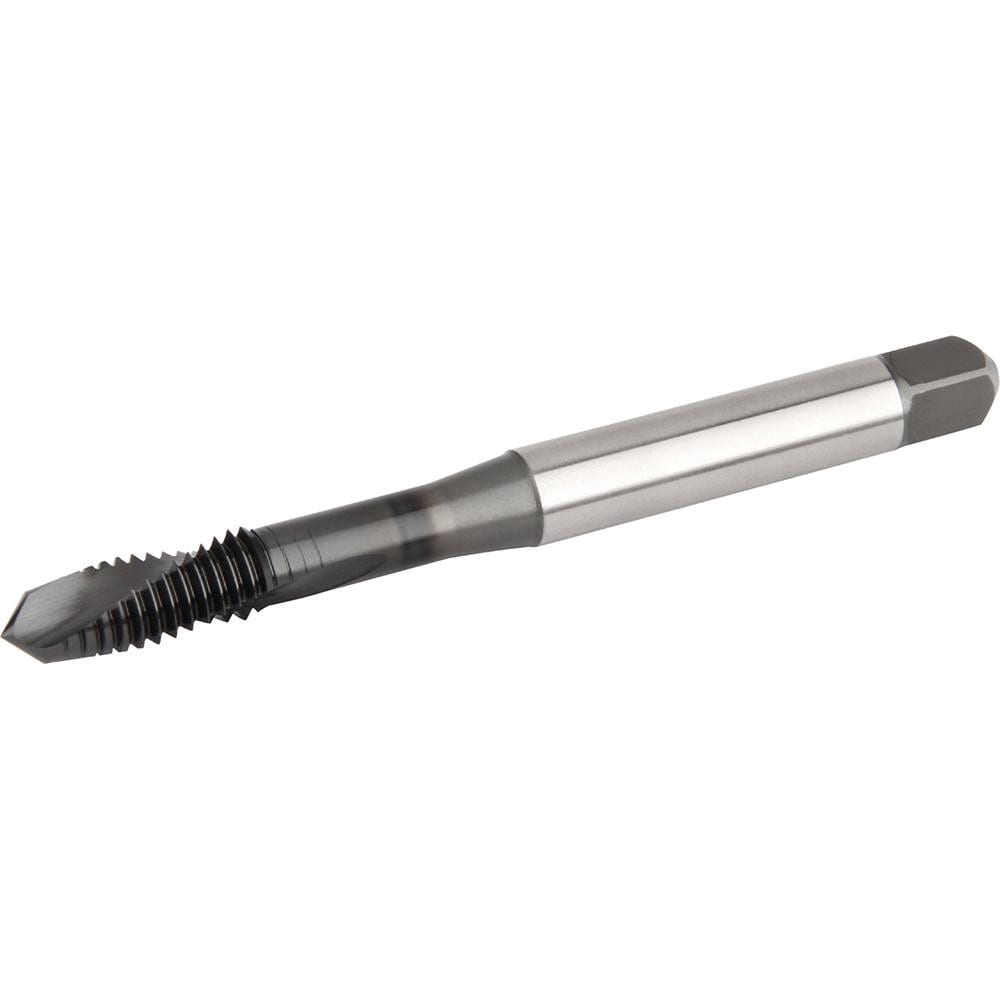

Brand: Widia / Part #: 5690938
Item #: 97547269
Brand: Widia
Model #: 5690938
Product Specifications
| Thread Size (mm) | M7x1 |
| Chamfer | Plug |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Number Of Flutes | 2 |
| Material | High Speed Steel |
| Threads per Inch | 25 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | C; CrC; TiN |
| Thread Depth (mm) | 35.00 |
| Coolant Through | No |
| Thread Length (mm) | 15.00 |
| Overall Length (mm) | 90.0000 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | Metric |
| Material Grade | WN44EG |
| Shank Diameter (mm) | 8.0800 |
| Square Length (mm) | 9.70 |
| Square Size (mm) | 5.99 |
| Material Application | Non-Ferrous Metal |
| Series | GT72 |
