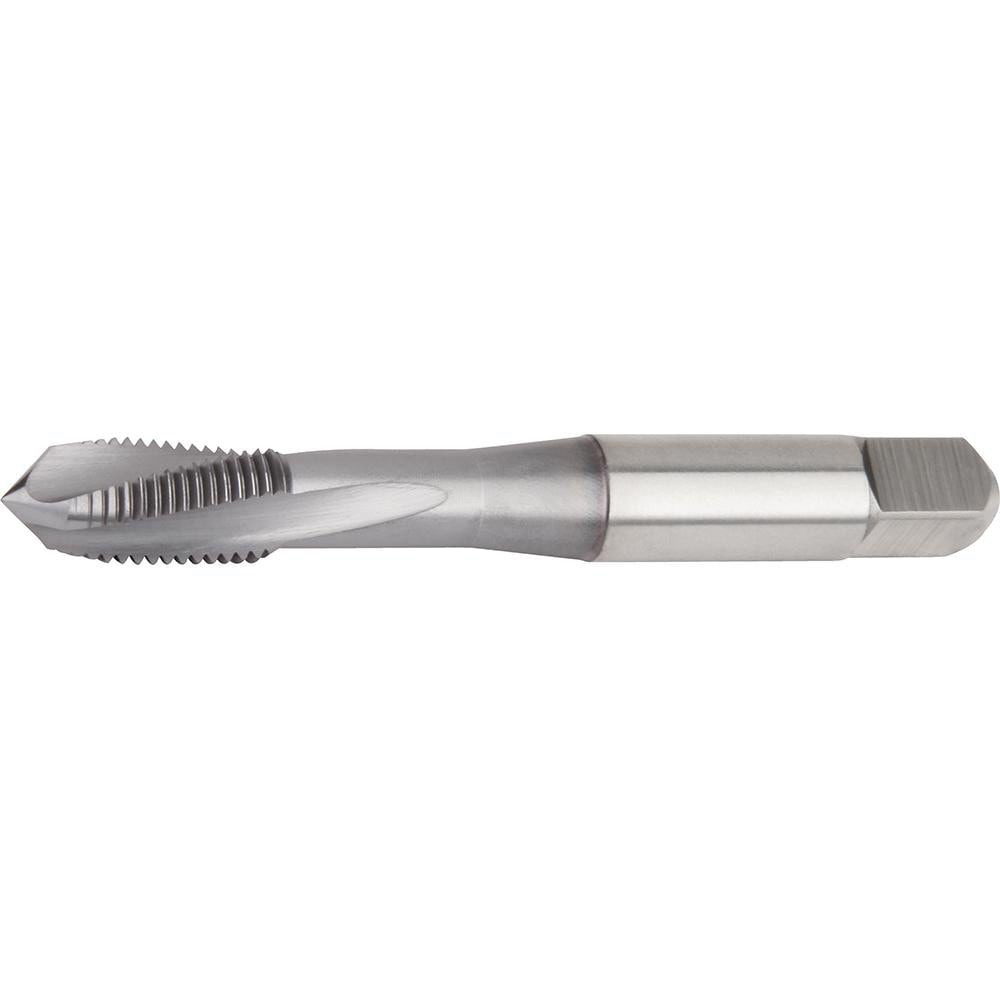

Brand: Widia / Part #: 5705629
Item #: 97422117
Brand: Widia
Model #: 5705629
Product Specifications
| Thread Size (Inch) | 5/16-18 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 18 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | Oxide; Nitride |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.4900 |
| Overall Length (Decimal Inch) | 2.7300 |
| Thread Depth (Decimal Inch) | 1.1500 |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Thread Standard | UNC |
| Material Grade | WS39MG |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Size (Decimal Inch) | 0.2360 |
| Material Application | High-Temperature Alloy |
| Series | GT90 |
