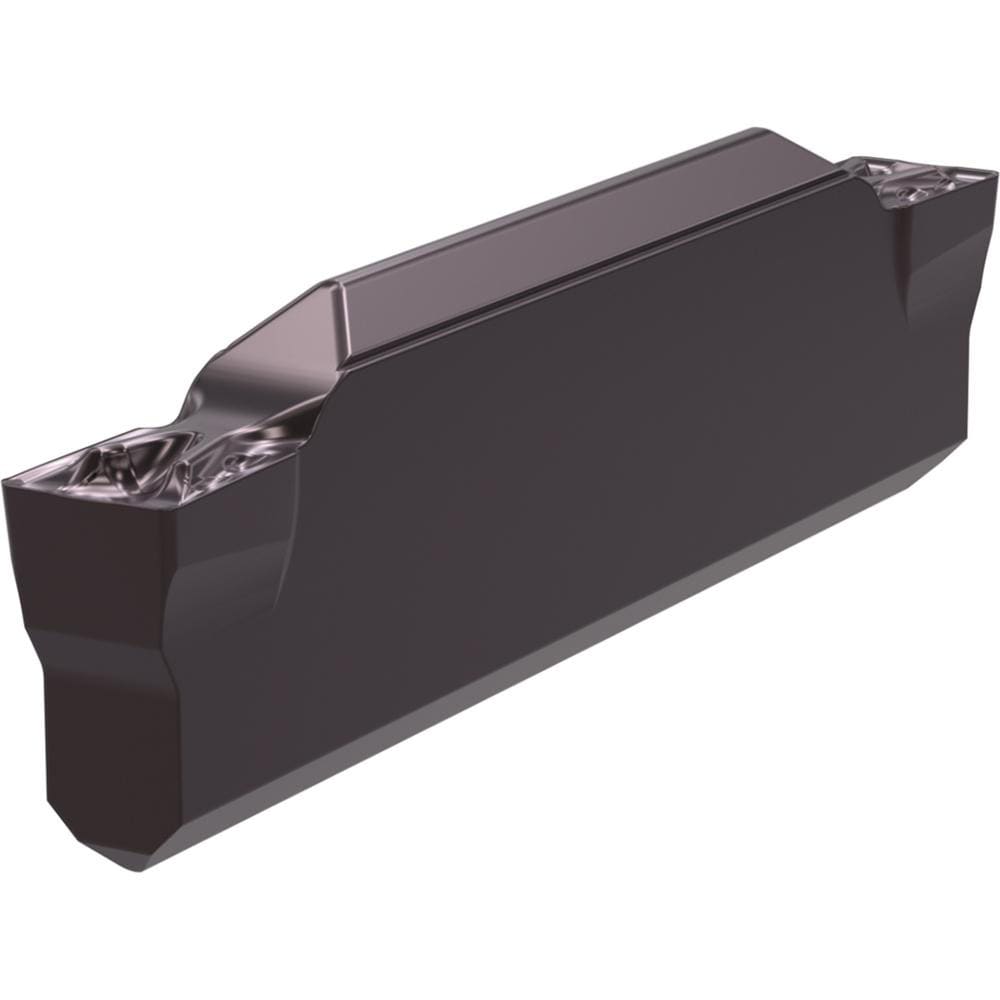

Brand: Widia / Part #: 4169561

Brand: Widia / Part #: 4169561


Item #: 94509924
Brand: Widia
Model #: 4169561

Product Specifications

Insert Style WMT
Insert Size Code 4
Insert Size 4
Insert Material Carbide
Manufacturer Grade WP25CT
Cutting Width (Decimal Inch) 0.1626
Maximum Depth of Cut (Decimal Inch) 1.0050
Insert Holding Method Clamp
Insert Hand Neutral
Corner Radius (Decimal Inch) 0.0126
Lead Angle 5.000
Rake Positive
Multi-use Tool No
Cutting Tool Application Grooving
Series WMT
Coating Process CVD
Overall Length (Decimal Inch) 1.0050
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code WMTS405M4U03PT
Iso Code WMTS405M4U03PT
Relief Angle 5
Maximum Corner Radius (Decimal Inch) 0.0126
Manufacturers Catalog Number WMTS405M4U03PT
Insert Thickness (Decimal Inch) 0.1820
Minimum Groove Width (mm) 4.13
Type WMT Groove Cutoff Turn Insert
Maximum Groove Width (mm) 4.13
Minimum Insert Width (mm) 3.15
Chip Breaker PT
Insert Seat Size 4
Style WMT Groove Cutoff Turn Insert
Insert Height (Decimal Inch) 0.1820
Full Radius No
Gage Diameter (Decimal Inch) 0.0940
Coating Classification CVD
Hole Diameter (Decimal Inch) 0.0000
Gage Diameter (Inch) 3/32
Overall Width (Decimal Inch - 4 Decimals) 0.1240
Coating/Finish TiCN; Al2O3
Number Of Cutting Edges 2
Single Or Double End Double
Groove Width (mm) 4.13
For Use With Grooving
$ 28.33
