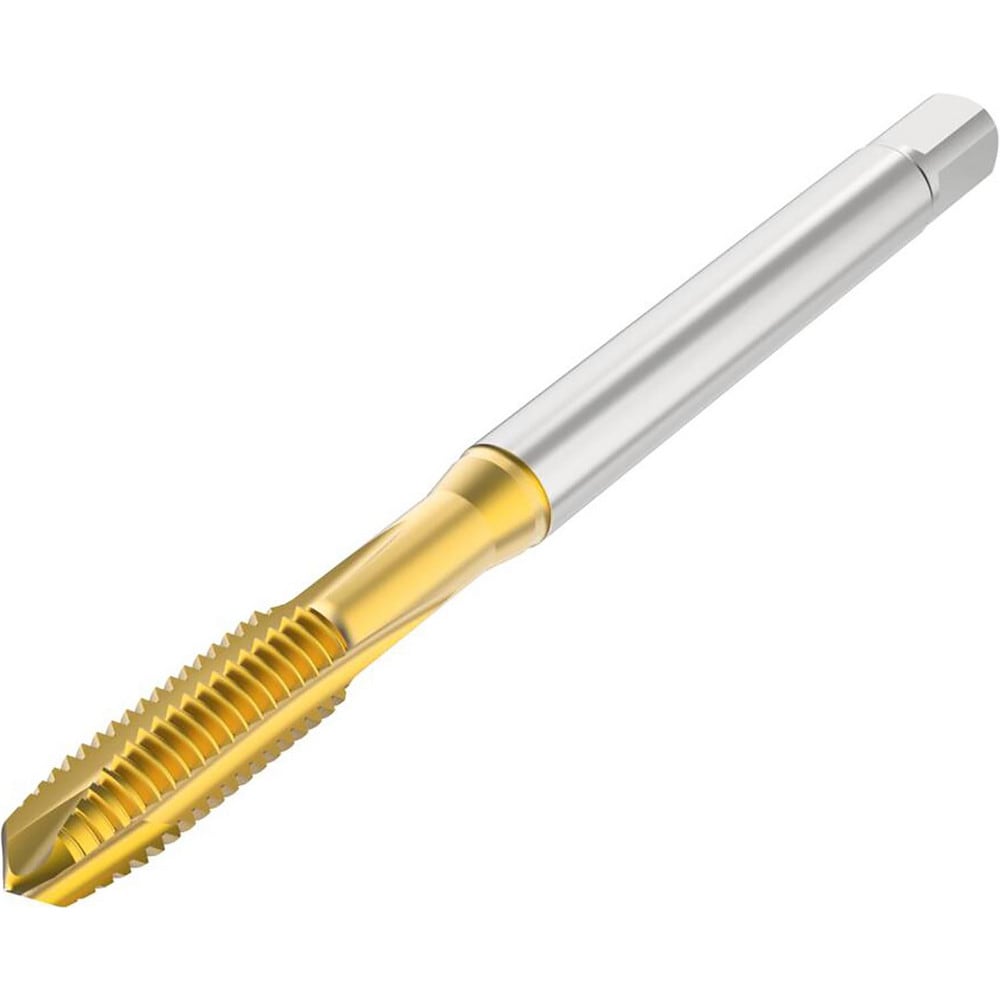

Brand: Seco / Part #: 10139428
Item #: 99589509
Brand: Seco
Model #: 10139428
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M1.1 |
| Class Of Fit | 4H |
| Number Of Flutes | 2 |
| Chamfer | Modified Bottoming |
| Material | HSS-PM |
| Coating/Finish | TN |
| Threads per Inch | 102 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 41.0000 |
| Thread Pitch (mm) | 0.25 |
| Thread Length (mm) | 6.00 |
| Thread Depth (mm) | 6.00 |
| Oversize | No |
| Application | Through-Hole Threading |
| Shank Diameter (mm) | 2.5000 |
| Tapping Depth (mm) | 13.00 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | T32 |
| Neck Length | 7.00 |
| Shank Length (mm) | 28.000 |
