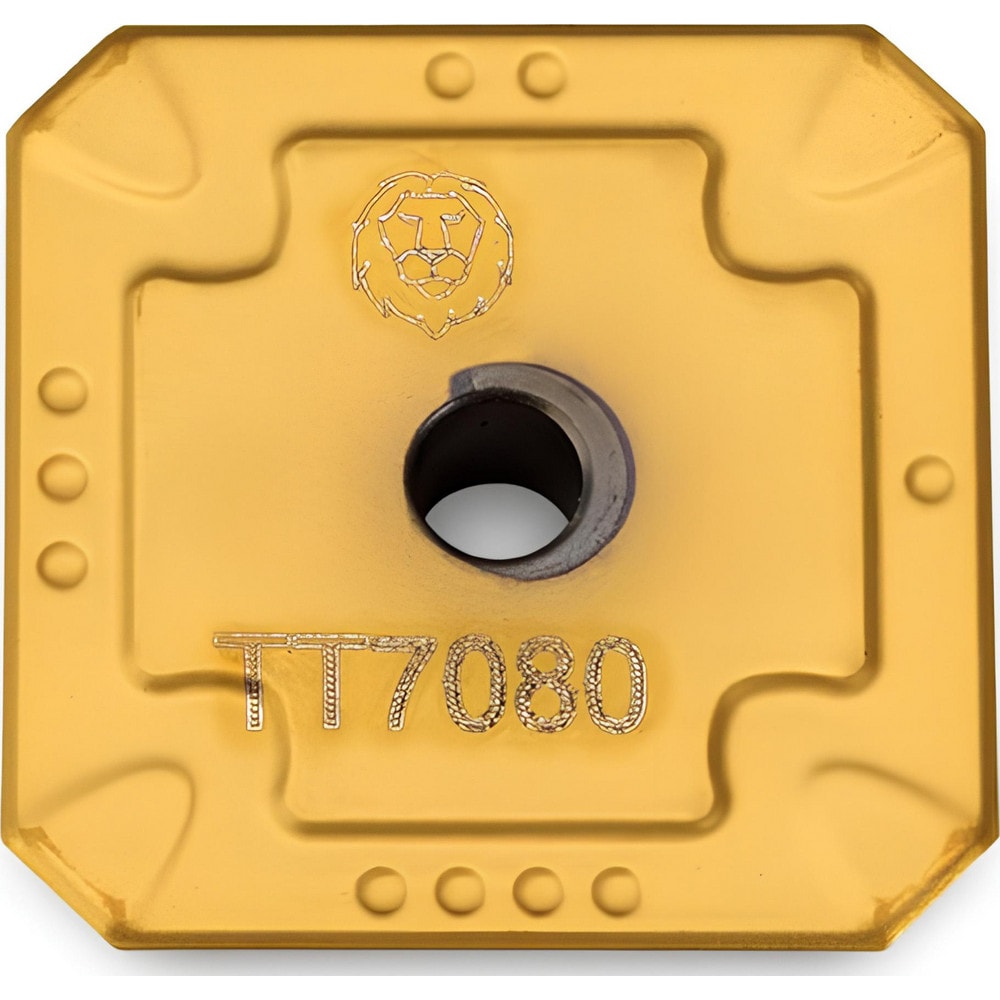

Brand: Ingersoll Cutting Tools / Part #: 6108987
Item #: 67326934
Brand: Ingersoll Cutting Tools
Model #: 6108987
Product Specifications
| Insert Style | SEKN |
| Insert Size Code | 1504 |
| Insert Material | Carbide |
| Manufacturer Grade | TT7080 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 5/8 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Insert Hand | Neutral |
| Series | SEKN |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3300 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | SEKN1504AFTN-HPN |
| Rake Angle | 20.000 |
| Manufacturers Catalog Number | SEKN1504AFTN-HPN TT7080 |
| Chip Breaker | HPN |
| Cutting Direction | Neutral |
| Shape | Square |
| Length of Cut (mm) | 8.3800 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
