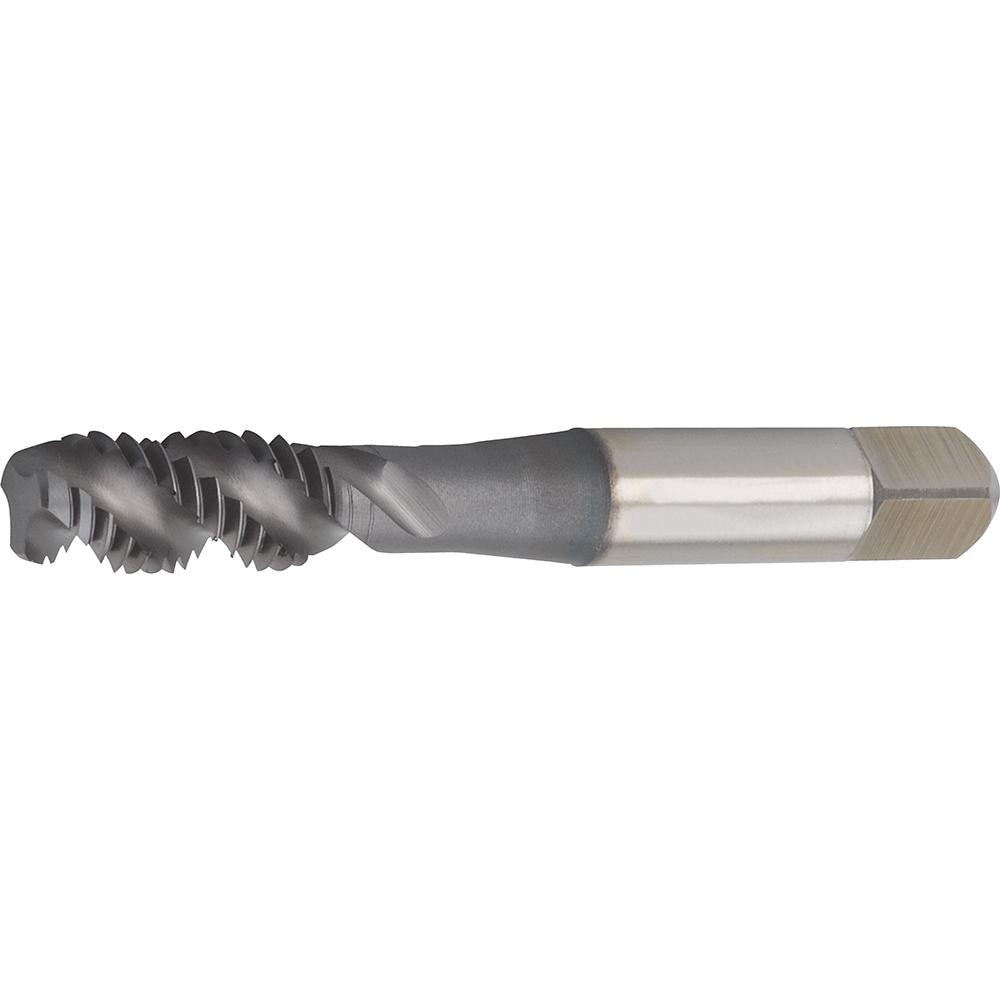

Brand: Widia / Part #: 5887080

Brand: Widia / Part #: 5887080


Item #: 97347389
Brand: Widia
Model #: 5887080

Product Specifications

Thread Size (Inch) 3/4-16
Chamfer Modified Bottoming
Thread Limit H3
Class Of Fit 3B
Number Of Flutes 4
Material High Speed Steel
Threads per Inch 16
Thread Direction Right Hand
Flute Direction Right Hand
Coating/Finish TiCN
Coolant Through No
Thread Length (Decimal Inch) 1.2200
Overall Length (Decimal Inch) 4.2500
Thread Depth (Decimal Inch) 2.0800
Thread Pitch (Decimal Inch) 0.0625
Thread Standard UNF
Material Grade WP42EG
Shank Diameter (Decimal Inch) 0.5900
Square Size (Decimal Inch) 0.4390
Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Series VTSFT-TC
$ 140.97
