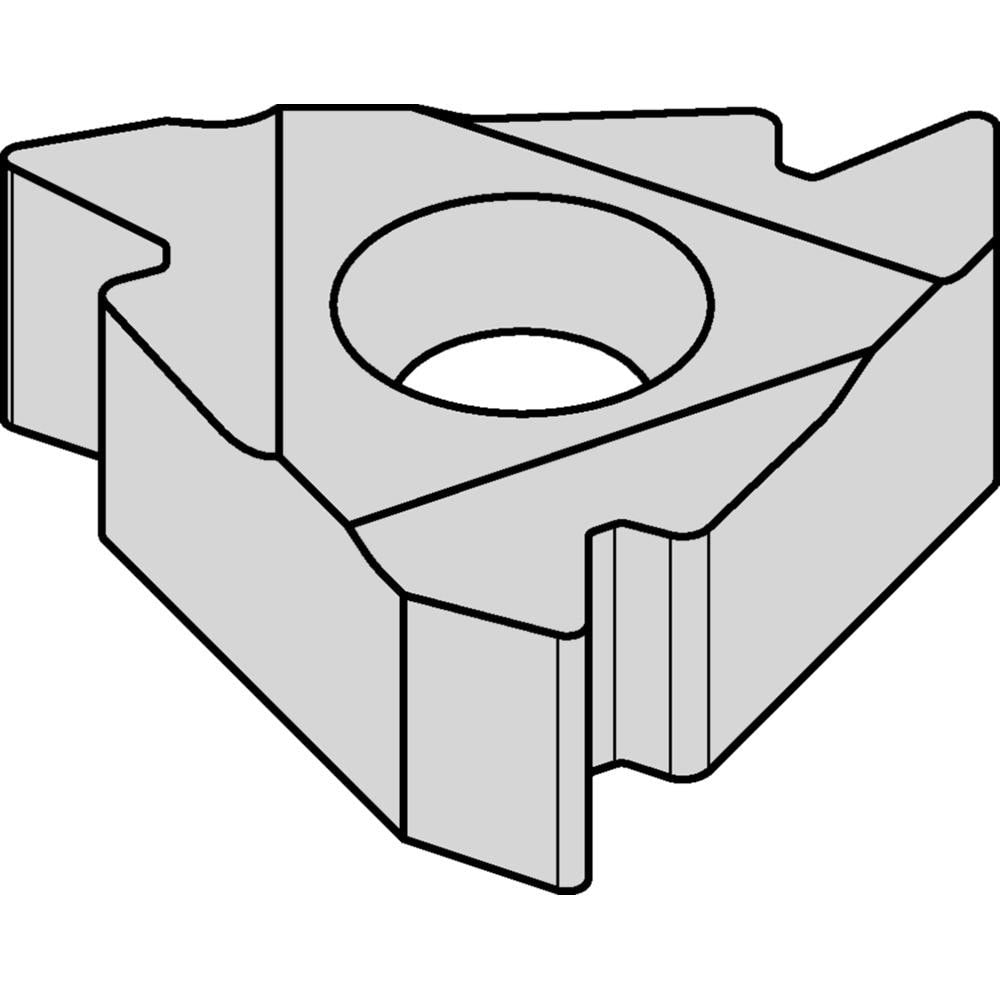

Brand: Widia / Part #: 2018262

Brand: Widia / Part #: 2018262


Item #: 99576290
Brand: Widia
Model #: 2018262

Product Specifications

Insert Style IR
Insert Size Code 2
Insert Material Carbide
Manufacturer Grade TN6025
Material Grade TiAlN
Threads Per Inch 16-48
Thread Type Internal
Pitch (mm) 0.50-1.50
Thread Standard 60 Degree V
Insert Hand Right Hand
Thickness (Inch) 1/8
Included Angle 60.00
Chipbreaker None
Series 2IR
Coating Process PVD
Inscribed Circle (Inch) 1/4
Corner Radius (Decimal Inch) 0.0020
Corner Radius (mm) 0.05
Hole Diameter (Decimal Inch) 0.1260
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code 2IRA60
Iso Code 2IRA60
Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.035
Face of Insert to Tip Centerline (Decimal Inch) 0.031
Number of Teeth Per Side 1
Cutting Direction Right Hand
Manufacturers Catalog Number 2IRA60
Relief Angle 0.000
Coating Classification PVD
Thickness (Decimal Inch - 4 Decimals) 0.1250
Coating/Finish TiAlN
$ 22.30
