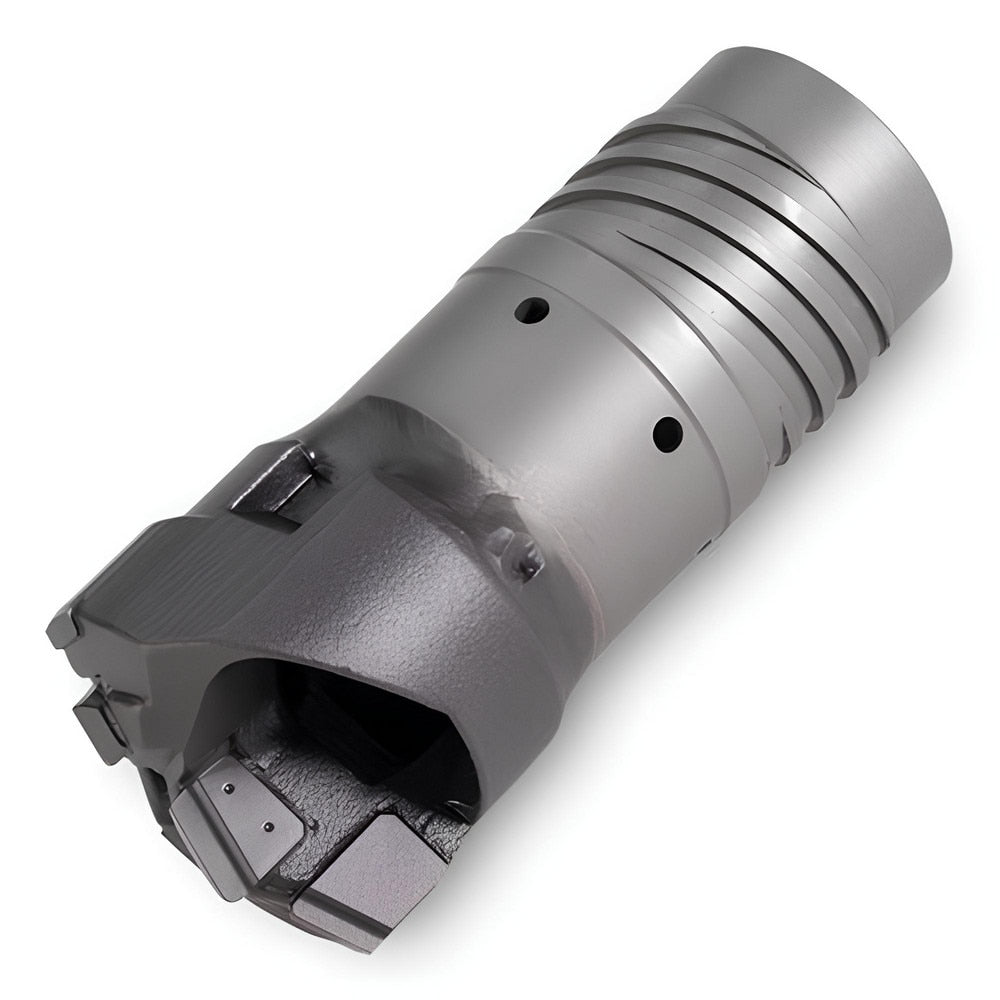

Brand: Ingersoll Cutting Tools / Part #: 4834939
Item #: 95317905
Brand: Ingersoll Cutting Tools
Model #: 4834939
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 1.3750 |
| Diameter (Decimal Inch) | 1.3750 |
| Point Angle | 30.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | TB250 |
| Cutting Direction | Right Hand |
| Series | BTA...DE4 |
| Coating Process | Uncoated |
| Height (Decimal Inch) | 2.780000 |
| Head Length (Decimal Inch) | 2.7800 |
| Insert Holding Method | Pin |
| Overall Length (mm) | 70.6100 |
| ISO Number | BTA1.375DE4-33 TB250 |
| Coolant Through | Yes |
| Cutting Diameter (Decimal Inch) | 1.3750 |
| Flute Length (mm) | 65.79 |
| Style | BTA...DE4 |
| Coating Classification | Uncoated |
| Applications | Drilling |
| Coating/Finish | Uncoated |
| Number Of Flutes | 2 |
