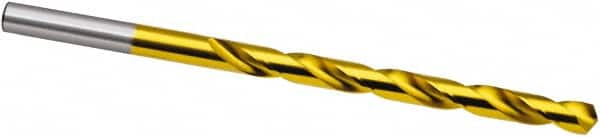

Guhring - 21/32" 118° Spiral Flute High Speed Steel Taper Length Drill Bit
Item #: 82516105
Brand: Guhring
Model #: 9006670166700
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 21/32 |
| Drill Bit Size (Decimal Inch) | 0.6562 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Cone Relief |
| Flute Length (mm) | 154.00 |
| Overall Length (mm) | 235.00 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 16.67 |
| Flute Length x Diameter Ratio | 10xD |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Web Thinning | Web-Thinning |
| Material Grade | M2 |
| Series/List | 667 |
