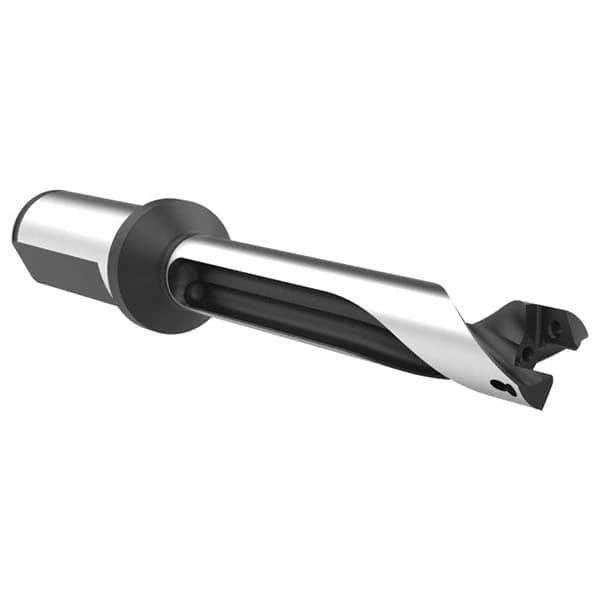

Allied Machine and Engineering - 18mm to 20mm Diam 3xD 60mm Max Depth Straight Flute Spade Drill
Item #: 12329413
Brand: Allied Machine and Engineering
Model #: ST03180-20FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 18 |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 20.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 20.00 |
| Overall Length (mm) | 144.00 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 60.00 |
| Flute Type | Straight Flute |
| Body Length (mm) | 94.00 |
| Shank Length (mm) | 50.00 |
| Series Code/Seat Size | 18 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
