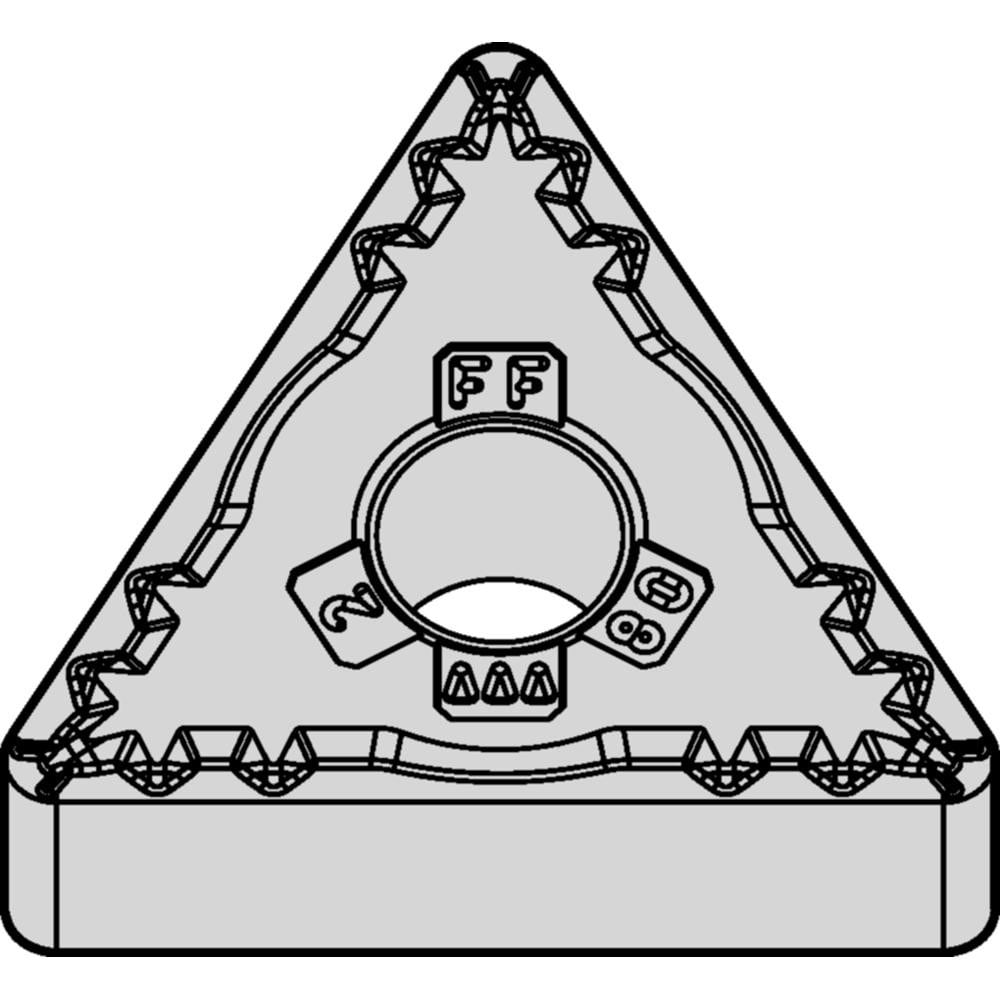

Brand: Widia / Part #: 4172691

Brand: Widia / Part #: 4172691


Item #: 95274676
Brand: Widia
Model #: 4172691

Product Specifications

Insert Style TNMG
Insert Shape Code T
Insert Size Code 331
Insert Shape Triangle
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM25CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.3248
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 60.00
Relief Angle 0.000
Series TNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6495
Number Of Cutting Edges 6
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code TNMG331FF
Iso Code TNMG160404FF
Manufacturers Catalog Number TNMG331FF
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker FF
Cutting Edge Style Sharp
Style TNMG
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
