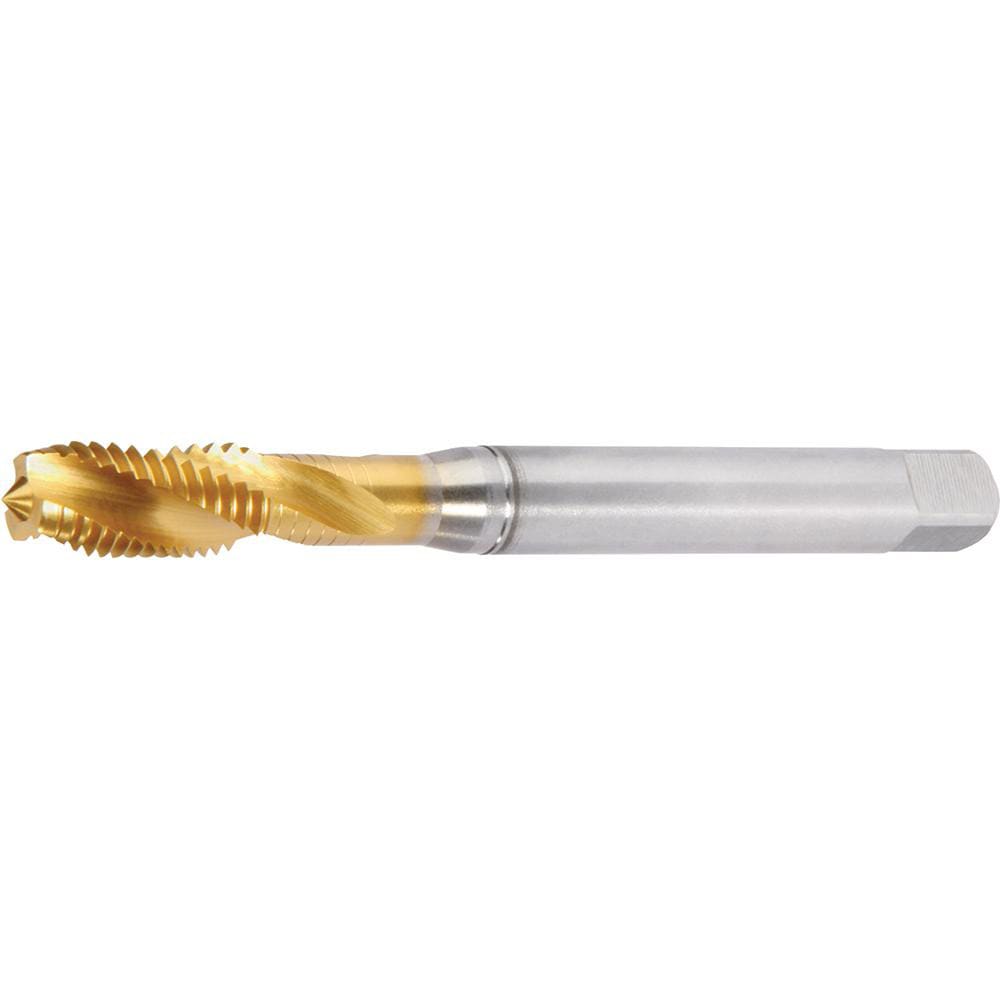

Brand: Widia / Part #: 4152708
Item #: 97189047
Brand: Widia
Model #: 4152708
Product Specifications
| Thread Size (mm) | M20x2.5 |
| Chamfer | Modified Bottoming |
| Thread Limit | D7 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Material | Powdered Metal |
| Threads per Inch | 10 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiN |
| Thread Depth (mm) | 32.00 |
| Coolant Through | No |
| Thread Length (mm) | 32.00 |
| Overall Length (mm) | 140.0000 |
| Thread Pitch (mm) | 2.50 |
| Thread Standard | Metric |
| Material Grade | WP31MG |
| Shank Diameter (mm) | 16.0000 |
| Square Length (mm) | 15.00 |
| Square Size (mm) | 12.00 |
| Material Application | Steel |
| Series | GT02 |
