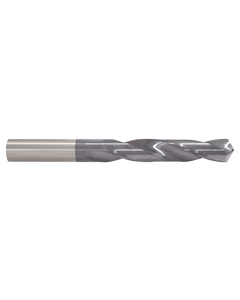

14 CARB TWIST DRILL AlTiN
Item #: MW23450301820B
Brand: Monster Tool Company
Model #: 450-301820B
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #14 |
| Cutting Edge Material | Solid Tungsten Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #14 |
| Grade | C-2 Sub-Micron |
| Length Group | Jobber |
| Point Shape | Drill Point |
| Coating | TiAlN |
| Measurement Type | Wire Gauge |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | |
| Series/List # | 450 |
| Application | | Drilling | |
| Length Chip Flute (LCF) | 1-5/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.182″ |
| Overall Length (OAL) | 2-3/4″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 25 Degrees |
| Single / Double End | Single End |
