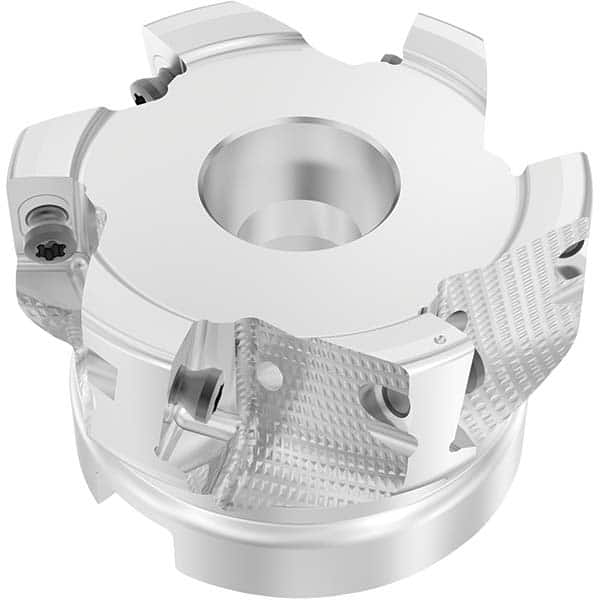

Seco - Indexable Square-Shoulder Face Mills Cutting Diameter (Inch): 2 Cutting Diameter (Decimal Inch): 2.0000
Item #: 18138479
Brand: Seco
Model #: 03336144
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2 ; Cutting Diameter (Decimal Inch): 2.0000 ; Arbor Hole Diameter (Inch): 0.75 ; Lead Angle: 90 ; Overall Height (mm): 40.00000 ; Insert Compatibility: XOMX; XOEX
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 0.75 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00000 |
| Insert Compatibility | XOMX; XOEX |
| Series | R220.69 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | R220.69 |
| Number of Flutes | 6 |
| Rake | Positive |
| Hub Diameter (mm) | 47.000 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 11700.000 |
| Toolholder Material | Steel |
