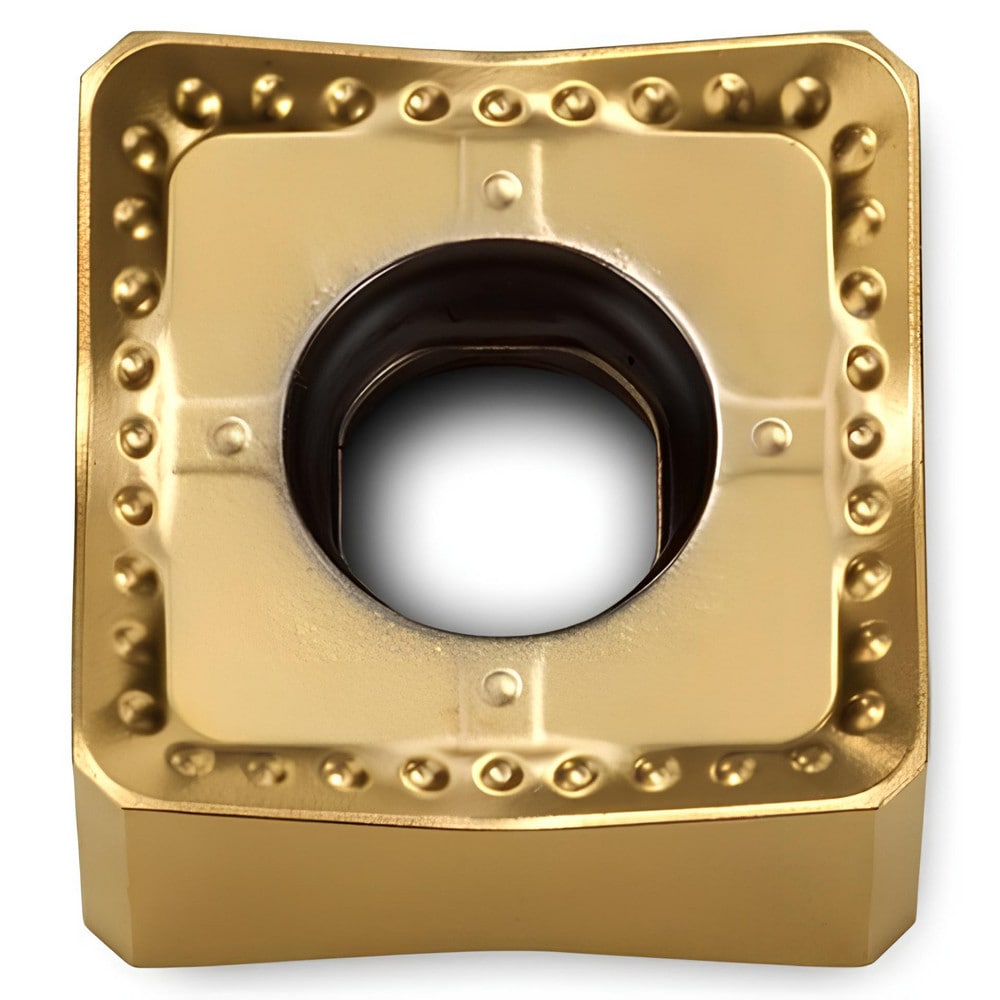

Brand: Ingersoll Cutting Tools / Part #: 5874464
Item #: 45026937
Brand: Ingersoll Cutting Tools
Model #: 5874464
Product Specifications
| Insert Style | SNGU |
| Insert Size Code | 1306 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2510 |
| Inscribed Circle (Decimal Inch) | 0.5300 |
| Insert Hand | Neutral |
| Series | SNGU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4500 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SNGU1306ANTN I |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | SNGU1306ANTN I IN2510 |
| Cutter Series Compatibility | DJ6T; DJ5T; DQ6T; DQ5T |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5300 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2680 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5300 |
