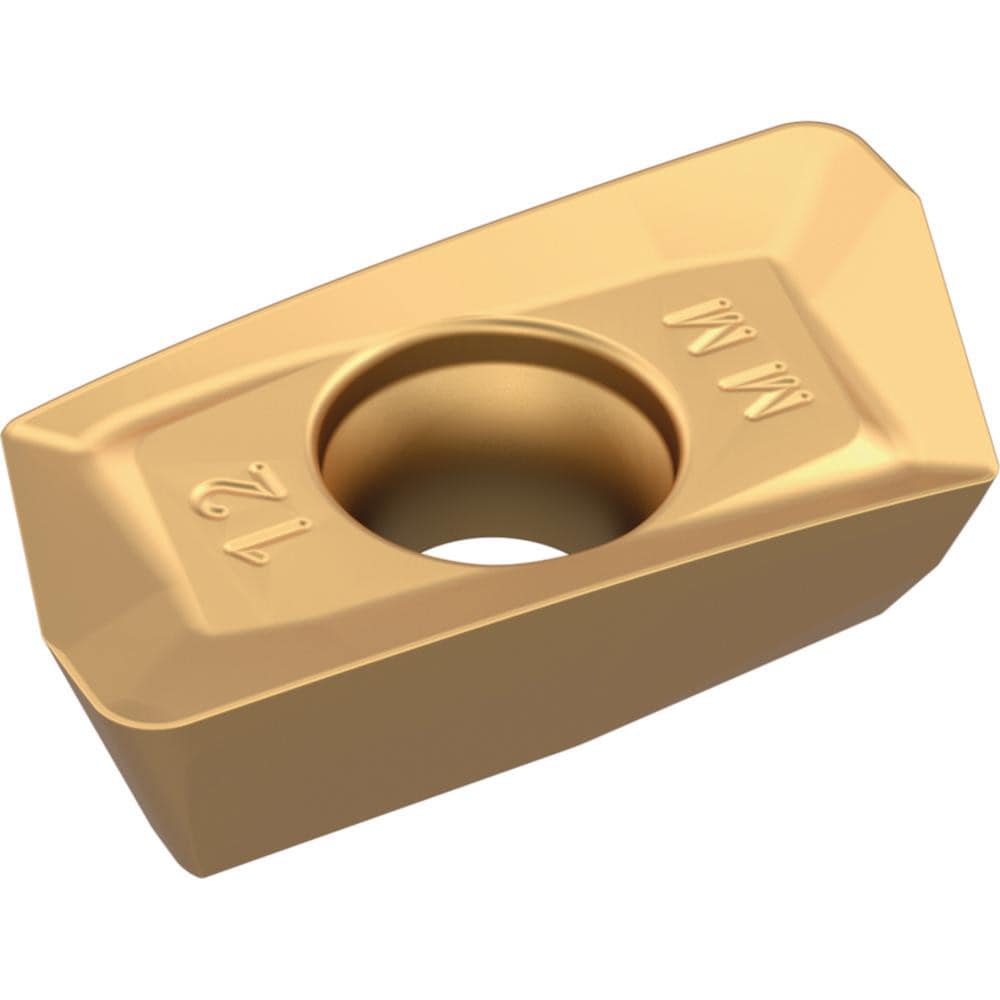

Brand: Widia / Part #: 5988158

Brand: Widia / Part #: 5988158


Item #: 94012283
Brand: Widia
Model #: 5988158

Product Specifications

Insert Style XDPT
Insert Size Code 1704
Insert Size 17
Insert Material Carbide
Manufacturer Grade WP25PM
Inscribed Circle (Decimal Inch) 0.3780
Corner Radius (Decimal Inch) 0.0790
Corner Radius (Inch) 5/64
Insert Hand Right Hand
Relief Angle 15.000
Series VSM17
Coating Process PVD
Hole Diameter (Decimal Inch) 0.1730
Maximum Depth of Cut (Decimal Inch) 0.6580
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Secondary Workpiece Material Hard Material; Cast Iron
Secondary Workpiece Material Code H; K
Ansi Code XDPT1705SRMM
Iso Code XDPT170420PESRMM
Manufacturers Catalog Number XDPT1705SRMM
Cutter Series Compatibility VSM17 XDPT
Chip Breaker MM
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Parallelogram
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish AlTiN
Included Angle Degree 75
Width (Decimal Inch - 4 Decimals) 0.3780
Thickness (Decimal Inch - 4 Decimals) 0.1929
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.7550
$ 16.60
