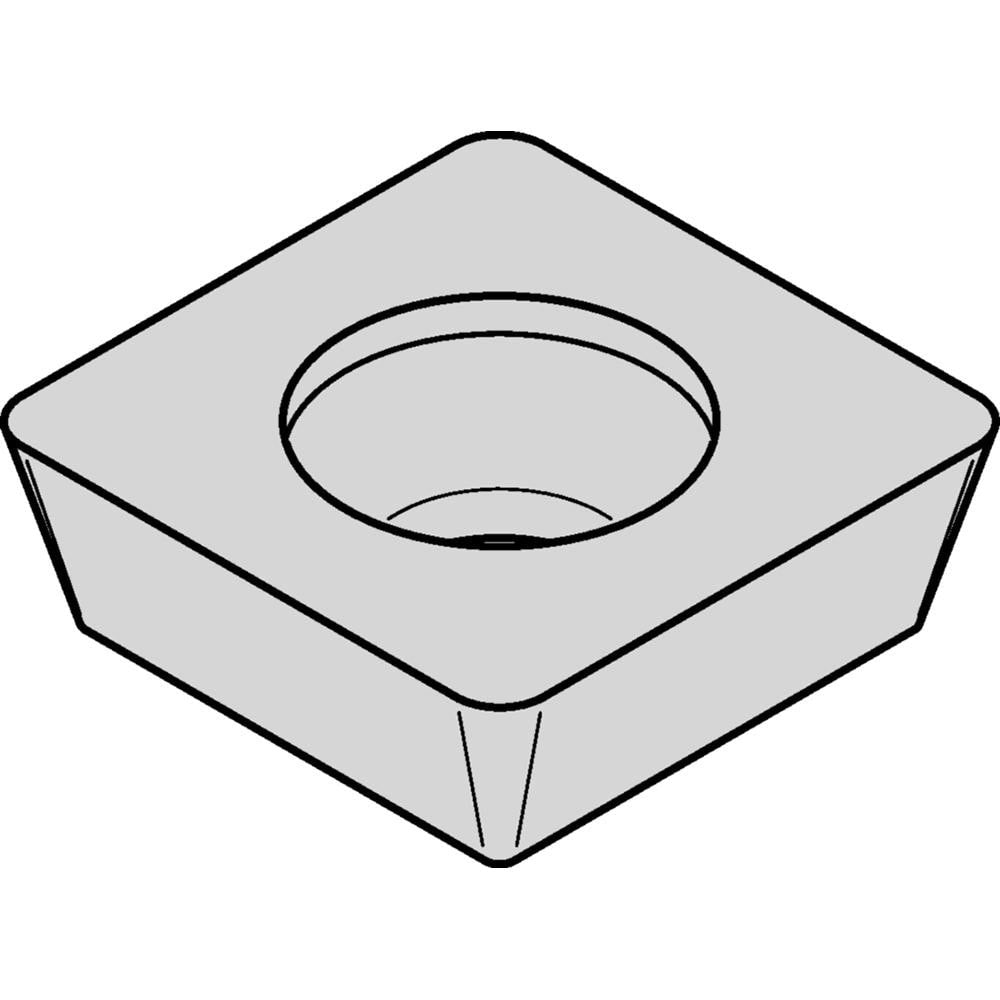

Brand: Widia / Part #: 2028532

Brand: Widia / Part #: 2028532


Item #: 94016615
Brand: Widia
Model #: 2028532

Product Specifications

Insert Style SPNT
Insert Size Code 1204
Insert Size 12
Insert Material Carbide
Width (Inch) 1/2
Manufacturer Grade THM
Length (Inch) 1/2
Thickness (Inch) 3/16
Inscribed Circle (Inch) 1/2
Inscribed Circle (Decimal Inch) 0.5000
Corner Radius (Decimal Inch) 0.0313
Corner Radius (Inch) 1/32
Insert Hand Neutral
Relief Angle 11.500
Series M25
Coating Process Uncoated
Hole Diameter (Decimal Inch) 0.2165
Maximum Depth of Cut (Decimal Inch) 0.5000
Number Of Cutting Edges 4
Insert Shape Square
Rake Positive
Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
Secondary Workpiece Material Code K; N
Ansi Code SPNT120408
Iso Code SPNT120408
Manufacturers Catalog Number SPNT120408
Cutter Series Compatibility M25
Chip Breaker None
Cutting Direction Neutral
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Square
Insert Holding Method Screw
Coating Classification Uncoated
Single or Double Sided Insert Single
Coating/Finish Uncoated
Included Angle Degree 90
Width (Decimal Inch - 4 Decimals) 0.5000
Thickness (Decimal Inch - 4 Decimals) 0.1875
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.5000
$ 13.35
