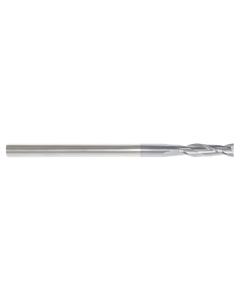

1/4-2FL-SE-EXT-XX/LG 1-1/2x6 TiCN
Item #: MW21216001028
Brand: Monster Tool Company
Model #: 216-001028
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Applicable Material | | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Application | | Slotting | Profiling | Plunging | |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 6″ |
| Length Group | Extended Extra, Extra Long |
| Cutting Edge Material | Solid Tungsten Carbide |
| Decimal Equivalent | 0.25″ |
| Coating | TiCN |
| Series/List # | 216 |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Single / Double End | Single End |
| End Shape | Square |
| Center Cutting | Yes |
