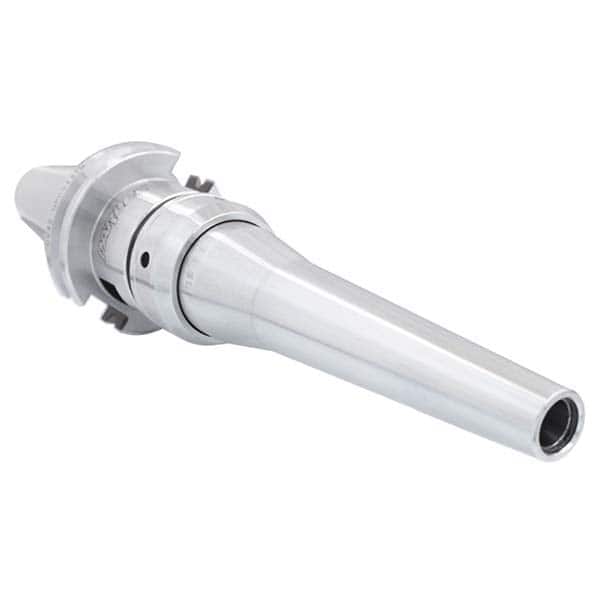

Parlec - Milling Chucks Taper Size: CAT TF40 (Taper Face) Shank Type: Dual Contact Taper
Item #: 10340685
Brand: Parlec
Model #: 74204005
Product Specifications
Milling Chucks; Taper Size: CAT TF40 (Taper Face) ; Shank Type: Dual Contact Taper ; Hole Diameter (Inch): 0.25 ; Nose Diameter (Decimal Inch): 0.4800 ; Projection (Decimal Inch): 5.9100 ; Through Coolant: Yes
| Taper Size | CAT TF40 (Taper Face) |
| Shank Type | Dual Contact Taper |
| Hole Diameter (Inch) | 0.25 |
| Nose Diameter (Decimal Inch) | 0.4800 |
| Projection (Decimal Inch) | 5.9100 |
| Through Coolant | Yes |
| TIR (mm) | 0.0030 |
| Clamping Depth (Decimal Inch) | 1.9700 |
| Overall Length (Decimal Inch) | 8.59000 |
| Balanced to (RPM) | 15000 |
| TIR (Decimal Inch) | 0.000100 |
| Coolant Type | Through-Spindle |
