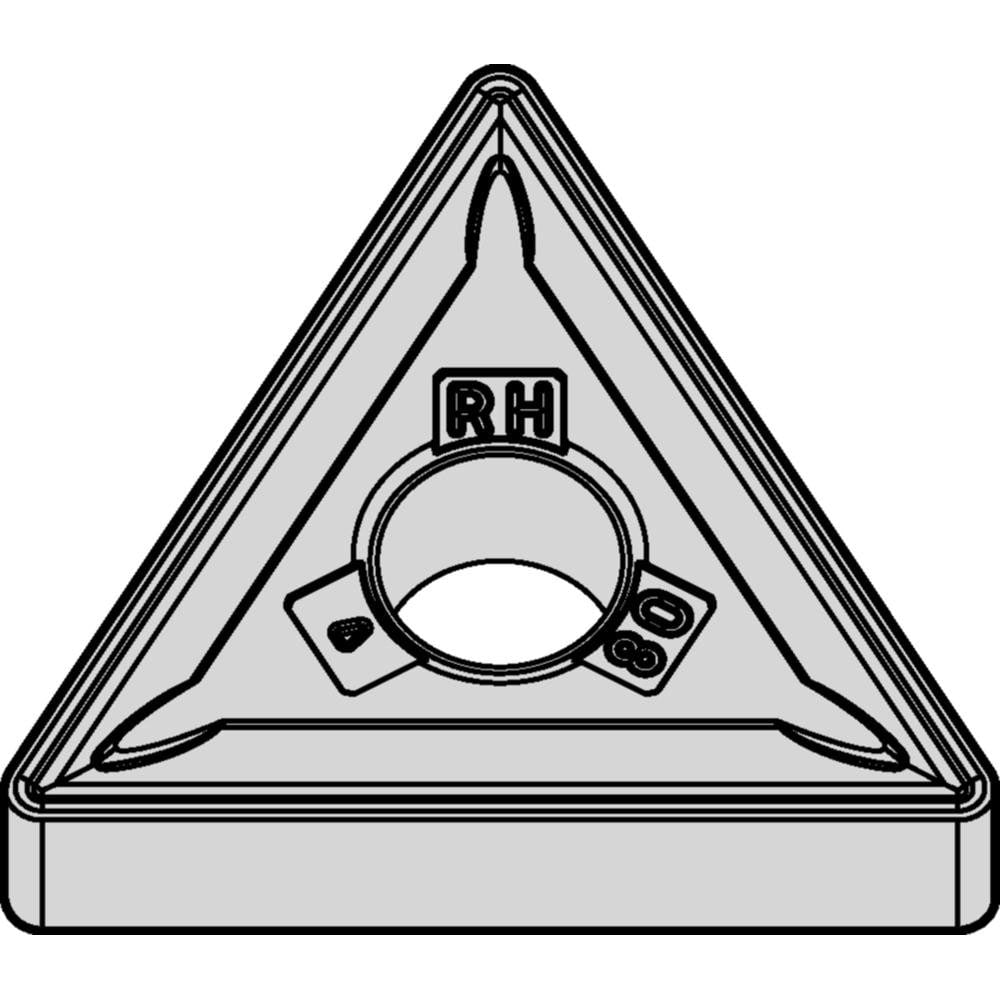

Brand: Widia / Part #: 4171543

Brand: Widia / Part #: 4171543


Item #: 94060472
Brand: Widia
Model #: 4171543

Product Specifications

Insert Style TNMG
Insert Shape Code T
Insert Size Code 333
Insert Shape Triangle
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP25CT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.3248
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 60.00
Relief Angle 0.000
Series TNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6496
Number Of Cutting Edges 6
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code TNMG333RH
Iso Code TNMG160412RH
Manufacturers Catalog Number TNMG333RH
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker RH
Style TNMG
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$ 5.82
