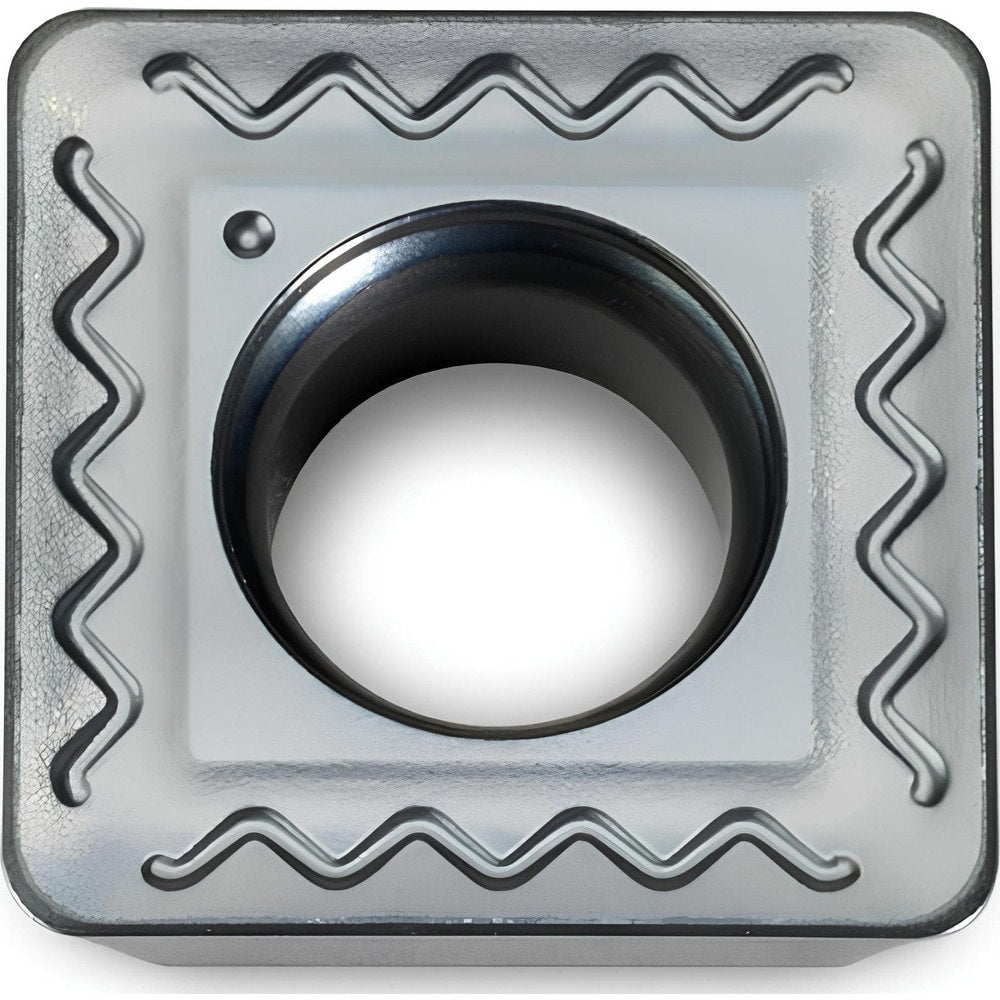

Brand: Ingersoll Cutting Tools / Part #: 6341210
Item #: 67310755
Brand: Ingersoll Cutting Tools
Model #: 6341210
Product Specifications
| Insert Style | SDMT |
| Insert Size Code | 090308 |
| Insert Material | Carbide |
| Manufacturer Grade | TT8020 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | SDMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3400 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | SDMT090308RBE |
| Rake Angle | 15.000 |
| Manufacturers Catalog Number | SDMT090308RBE TT8020 |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3750 |
