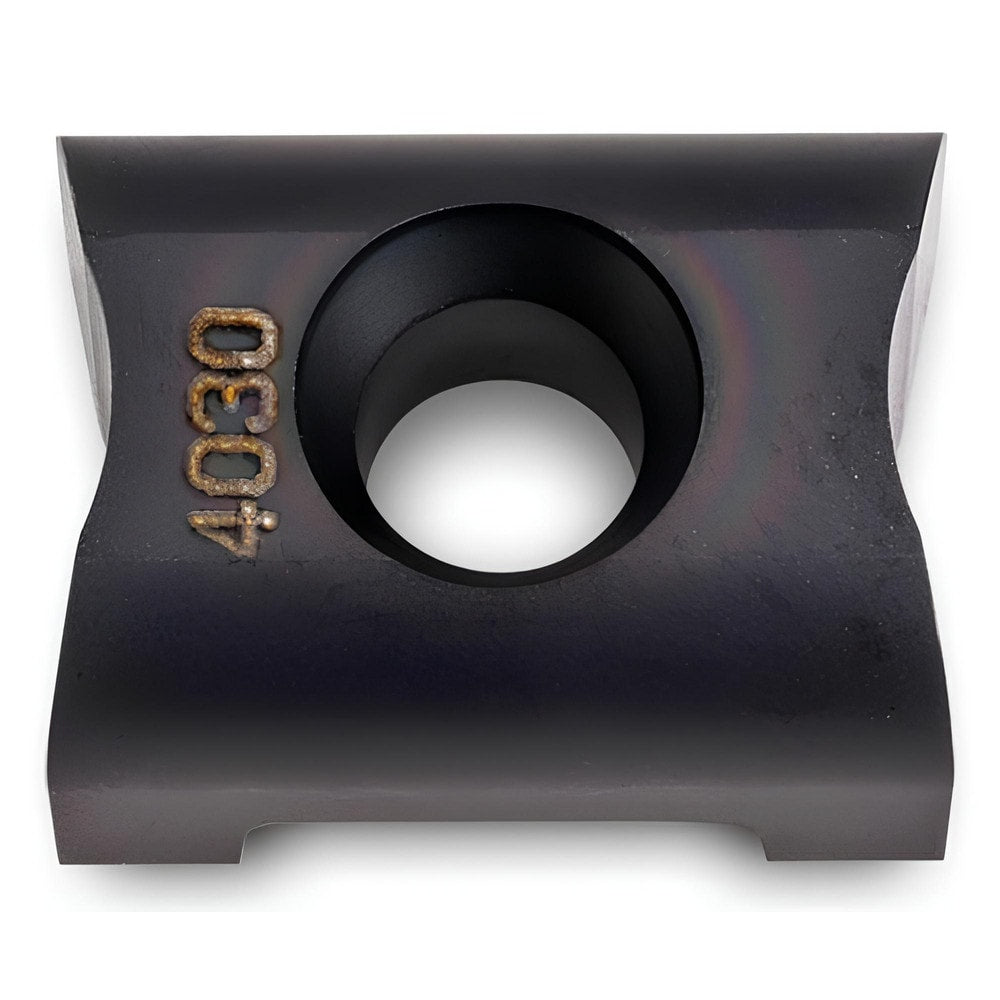

Brand: Ingersoll Cutting Tools / Part #: 2915831
Item #: 67319111
Brand: Ingersoll Cutting Tools
Model #: 2915831
Product Specifications
| Insert Style | IXH |
| Insert Size Code | 415 |
| Insert Material | Carbide |
| Manufacturer Grade | IN4005 |
| Inscribed Circle (Decimal Inch) | 0.5530 |
| Corner Radius (Inch) | 1/8 |
| Insert Hand | Neutral |
| Series | IXH |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4200 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | IXH415-G04 A |
| Manufacturers Catalog Number | IXH415-G04 A IN4005 |
| Cutter Series Compatibility | 3VJ4V |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Rectangle |
| Length of Cut (mm) | 10.6700 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrO; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5530 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2980 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4200 |
