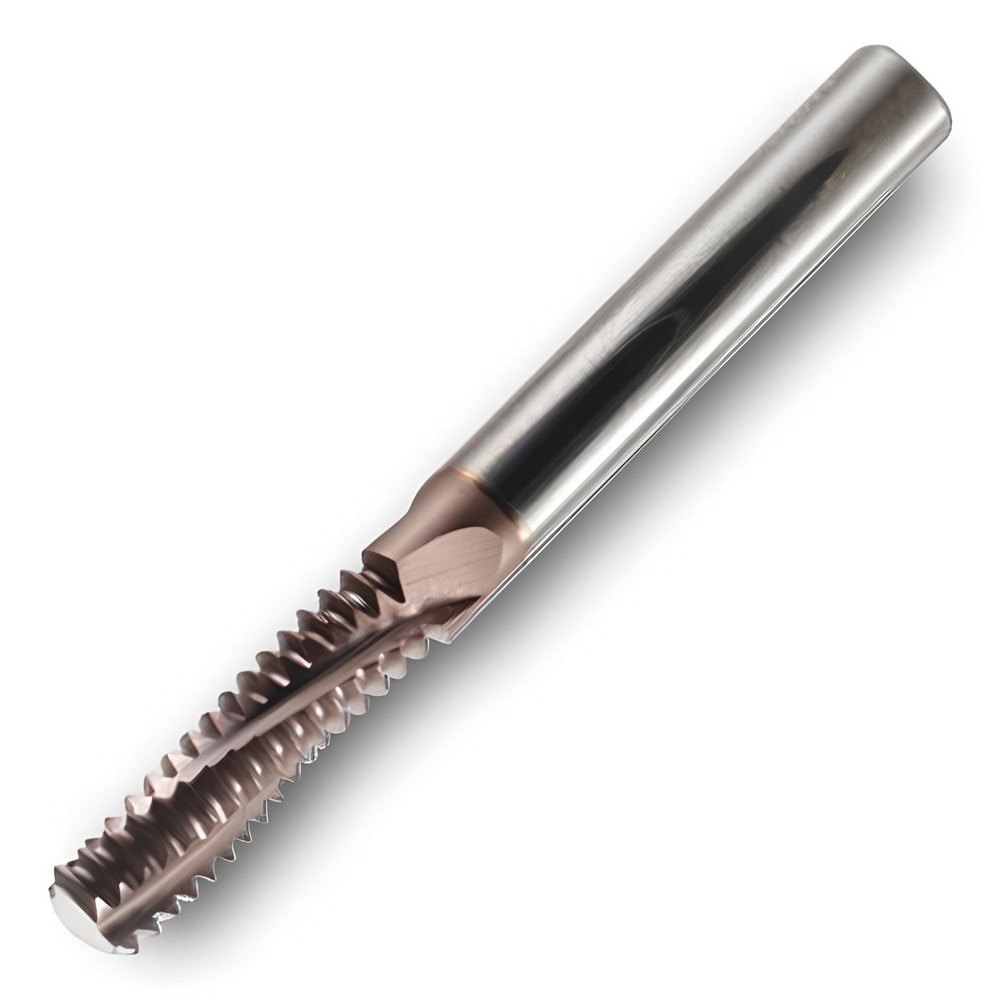

Brand: Ingersoll Cutting Tools / Part #: 5603921
Item #: 51771293
Brand: Ingersoll Cutting Tools
Model #: 5603921
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 3/4 |
| Thread Depth | 1.2200 |
| Thread Depth (Decimal Inch) | 1.2200 |
| Thread Type | UN |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.4720 |
| Minimum Nominal Diameter (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 2.2800 |
| Overall Length (Decimal Inch) | 3.5000 |
| Thread Standard | UN |
| Thread Mill Type | Mini |
| Flute Direction | Right Hand |
| Material Grade | IN2005 |
| Series | MTEC-UN |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2200 |
| Thread Length (Decimal Inch) | 1.2200 |
| Teeth Per Inch | 16 |
