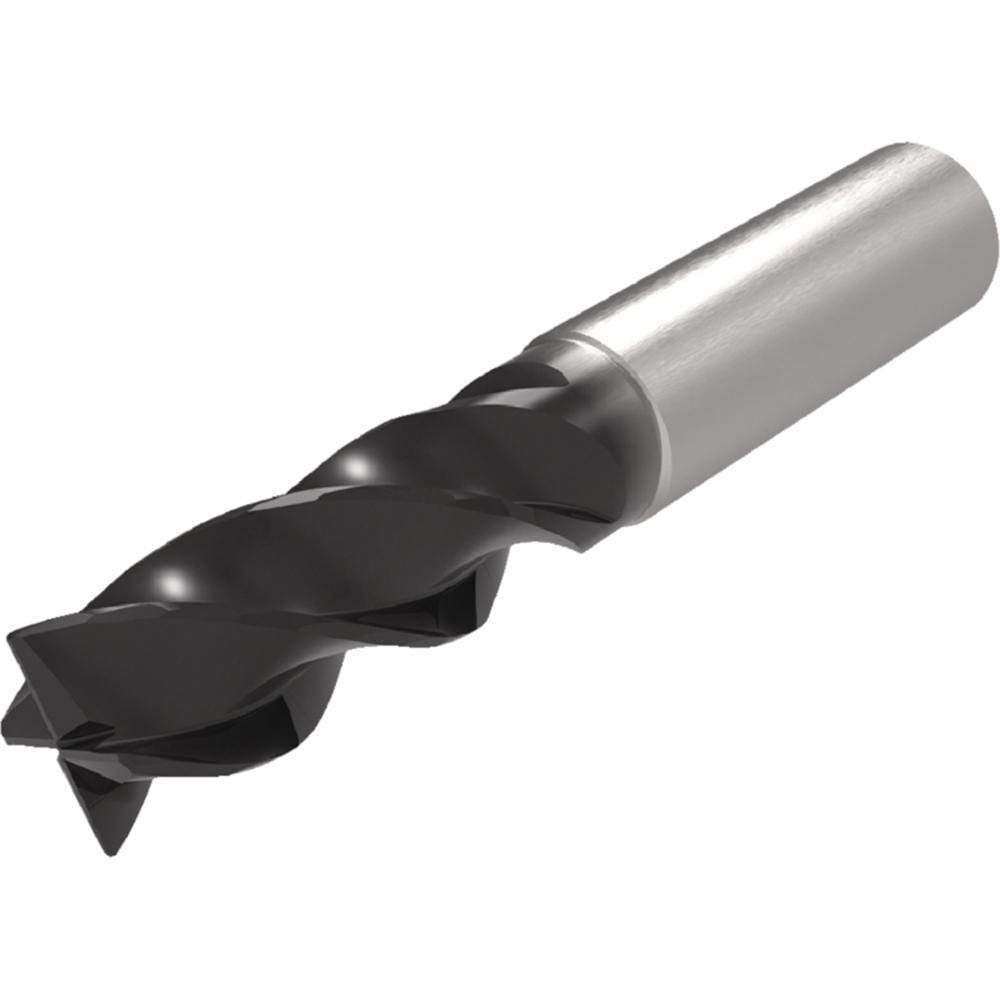

Brand: Widia / Part #: 6830477

Brand: Widia / Part #: 6830477


Item #: 98121783
Brand: Widia
Model #: 6830477

Product Specifications

Mill Diameter (mm) 20.00
Corner Radius (mm) 3.00
Coating/Finish AlTiN
End Mill Material Solid Carbide
Number Of Flutes 4
Single Or Double End Single
Overall Length (mm) 115.0000
Length of Cut (mm) 40.0000
Cutting Direction Right Hand
Coolant Through No
Pitch Close
Flute Direction Right Hand
Helix Angle 36
Chipbreaker No
End Type Corner Radius
Length Type Regular
Flute Type Helical
Extended Reach Yes
Shank Type Cylindrical
Centercutting Yes
Variable Index Yes
Variable Helix Yes
Material Removal Type Finishing
Shank Diameter (mm) 20.0000
Neck Diameter (mm) 18.800
Minimum Helix Angle 37
Maximum Helix Angle 39
Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code S; H; K; M
Material Grade WS15PE
Series 4XNE
Coating Classification PVD
Helix Style Variable
$ 338.01
