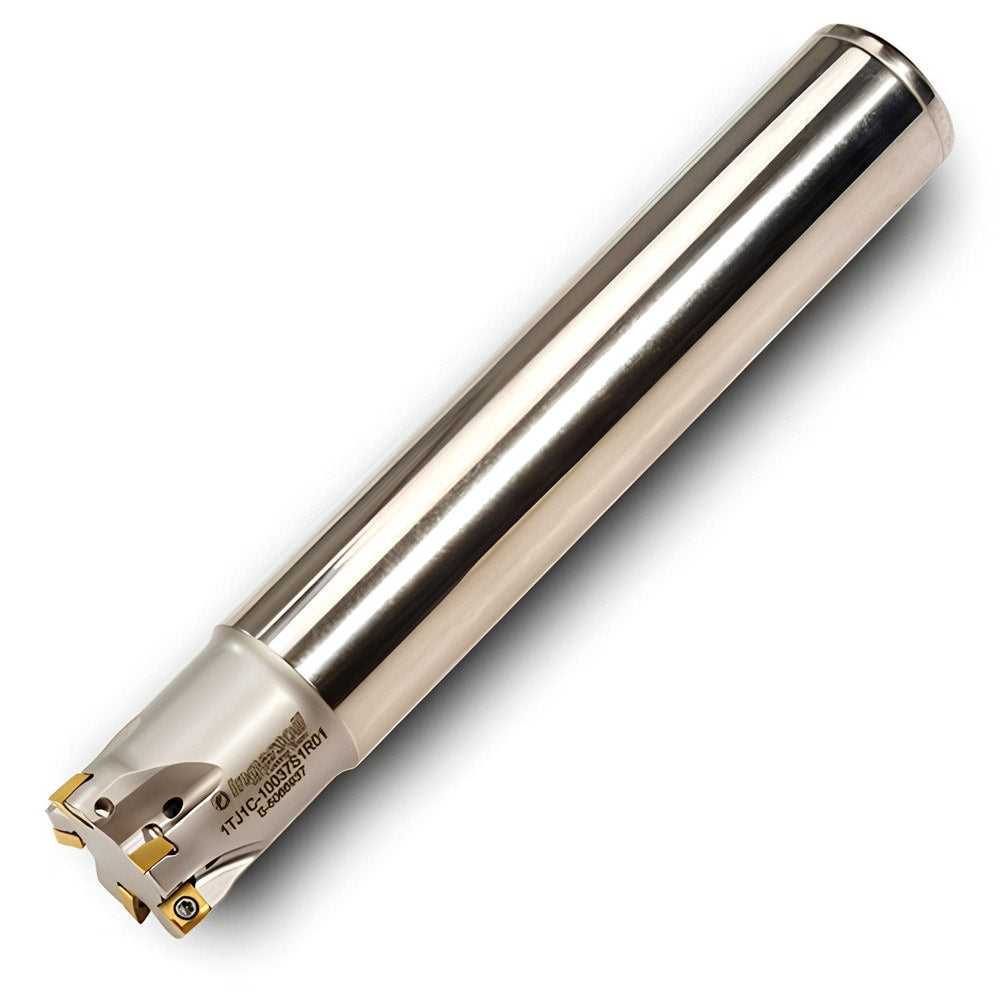

Brand: Ingersoll Cutting Tools / Part #: 2910942
Item #: 38016119
Brand: Ingersoll Cutting Tools
Model #: 2910942
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Minimum Cutting Diameter (Inch) | 3/4 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (mm) | 4.57 |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Cutter Style | 1TJ1C |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Maximum Ramping Angle | 3.3 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 127.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Tool Material | Steel |
| Series | 1TJ1C |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Inch) | 3-3/4 |
| Shank Length (Decimal Inch) | 3.7500 |
| Head Length (Inch) | 1-1/4 |
| Head Length (Decimal Inch) | 1.2500 |
| Tool Application | Facing; Pocketing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Negative |
| Complete Insert Compatibility | UNHU0503..; ENHU0503.. |
| Insert Compatibility | UNHU0503..; ENHU0503.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 1TJ1C-07030S7R01 |
| Usable Length (mm) | 31.750 |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 1.2500 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
