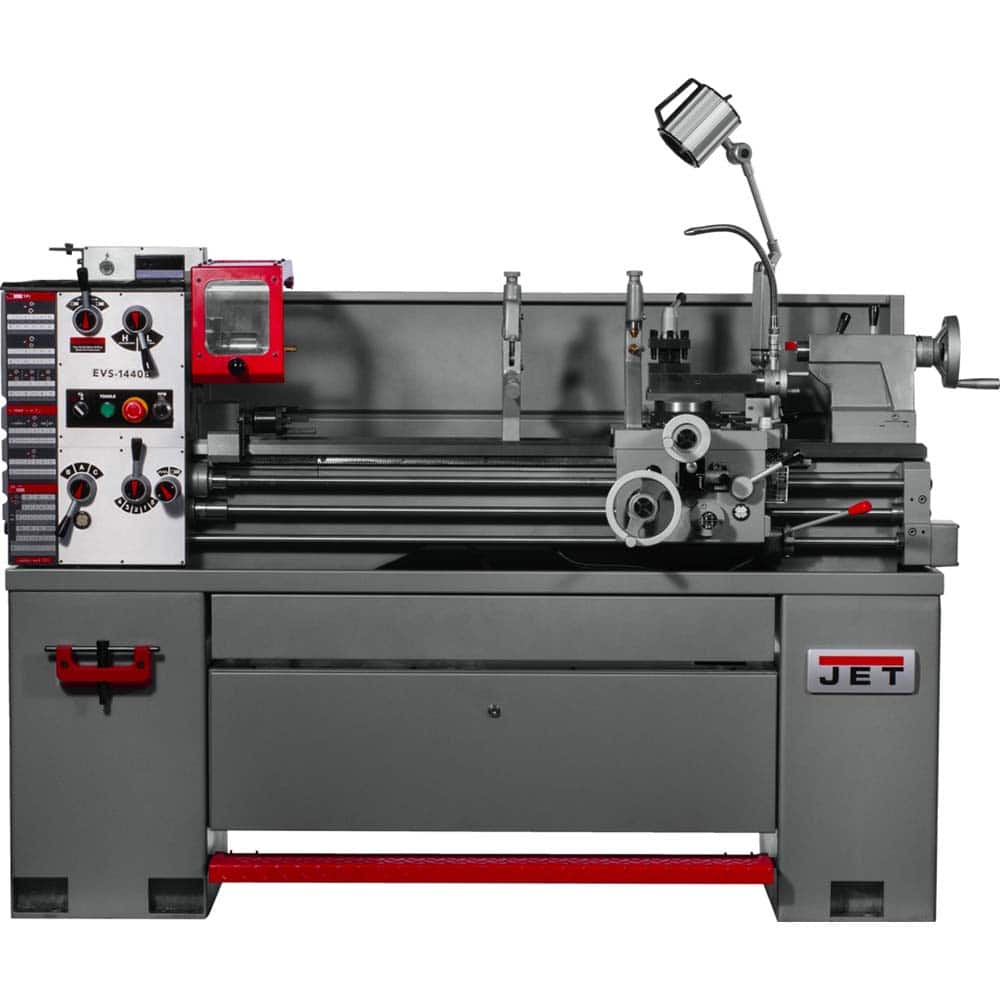

Jet - Bench, Engine & Toolroom Lathes Machine Type: Bench Lathe Spindle Speed Control: Variable
Item #: 14767214
Brand: Jet
Model #: 311450
Features and Benefits
Bench lathes are used for light- to medium-duty work and are mounted onto a workbench or stand. They are capable of machining larger work than hobby lathes with swings of 9" to 13".
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Bench, Engine & Toolroom Lathes; Machine Type: Bench Lathe ; Spindle Speed Control: Variable ; Phase: 3 ; Voltage: 230/460V ; Horsepower (HP): 3 ; Distance Between Centers (Inch): 40
| Machine Type | Bench Lathe |
| Spindle Speed Control | Variable |
| Phase | 3 |
| Voltage | 230/460V |
| Horsepower (HP) | 3 |
| Distance Between Centers (Inch) | 40 |
| Spindle Bore Diameter (Inch) | 1-1/2 |
| Spindle Taper Size (No Sleeve) | 3MT |
| Spindle Taper Size | 3 MT |
| Spindle Taper Size (Sleeve) | 5MT |
| Swing Over Gap (Inch) | 19-1/2 |
| Swing Over Cross Slide (Inch) | 9-1/16 |
| Gap Length (Decimal Inch) | 9.5000 |
| Bed Width (Inch) | 7.48 |
| Number of Spindle Speeds | Variable |
| Minimum Spindle Speed (RPM) | 40 |
| Maximum Spindle Speed (RPM) | 2000 |
| Number of Inch Threads | 34 |
| Maximum Threads Per Inch | 12 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0016 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0460 |
| Minimum Threads Per Inch | 2 |
| Cross Slide Travel (Inch) | 7 |
| Tailstock Travel (Decimal Inch) | 6.1250 |
| Overall Length (Decimal Inch) | 68.50000 |
| Overall Height (Inch) | 50 |
| Overall Depth (Inch) | 28.3 |
| Includes 1 | Taper Attachment |
| Includes | Taper Attachment |
| Compound Travel (Inch) | 3-1/2 |
