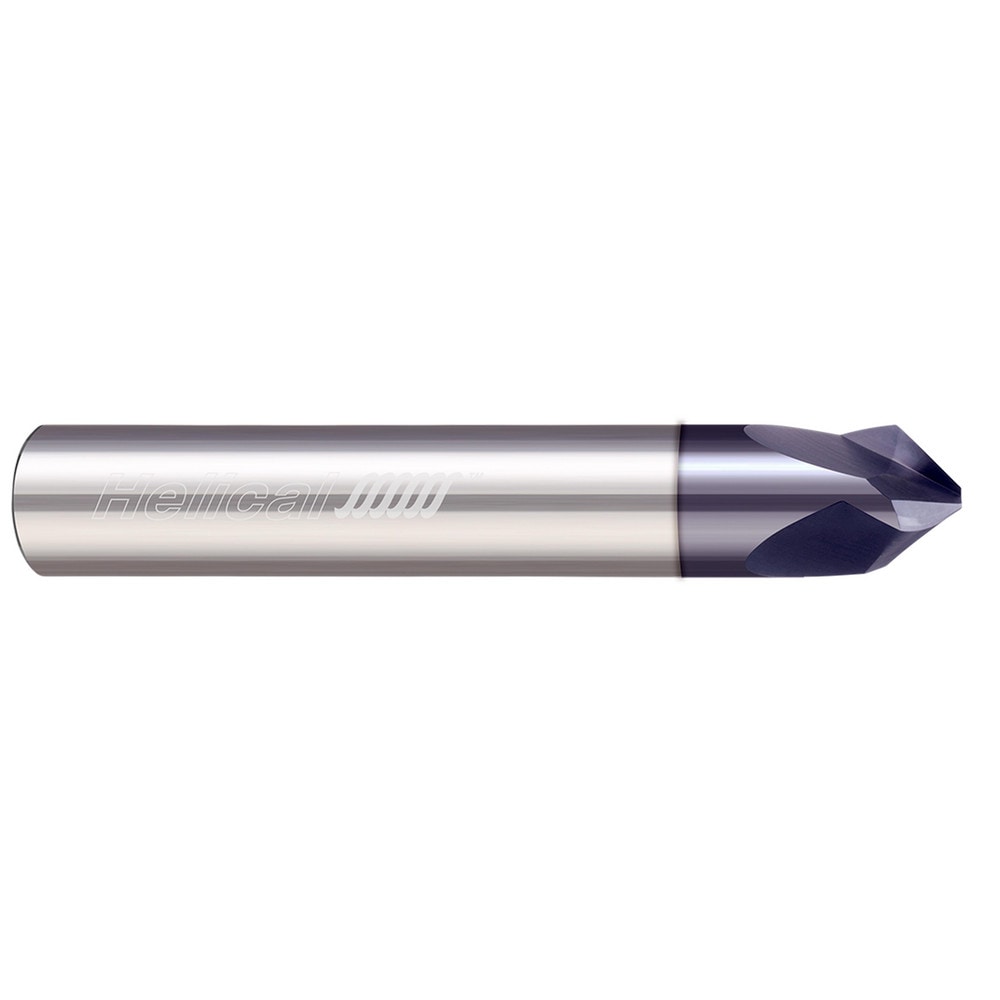

Brand: Helical Solutions / Part #: 83872
Item #: 99137341
Brand: Helical Solutions
Model #: 83872
Product Specifications
| Cutter Head Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 3 |
| End Type | Single |
| Included Centerline Angle | 45 |
| Included Side Angle | 45 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Cutting Direction | Right Hand |
| Series | Specialty Profiles - Chamfer Mills - Helical Flute - 3 & 5 Flute - High Performance - Tipped Off |
| Chamfer Mill Material | Solid Carbide |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0430 |
| Coating/Finish | Aplus |
| Single Or Double End | Single |
| Included Angle | 90.00 |
