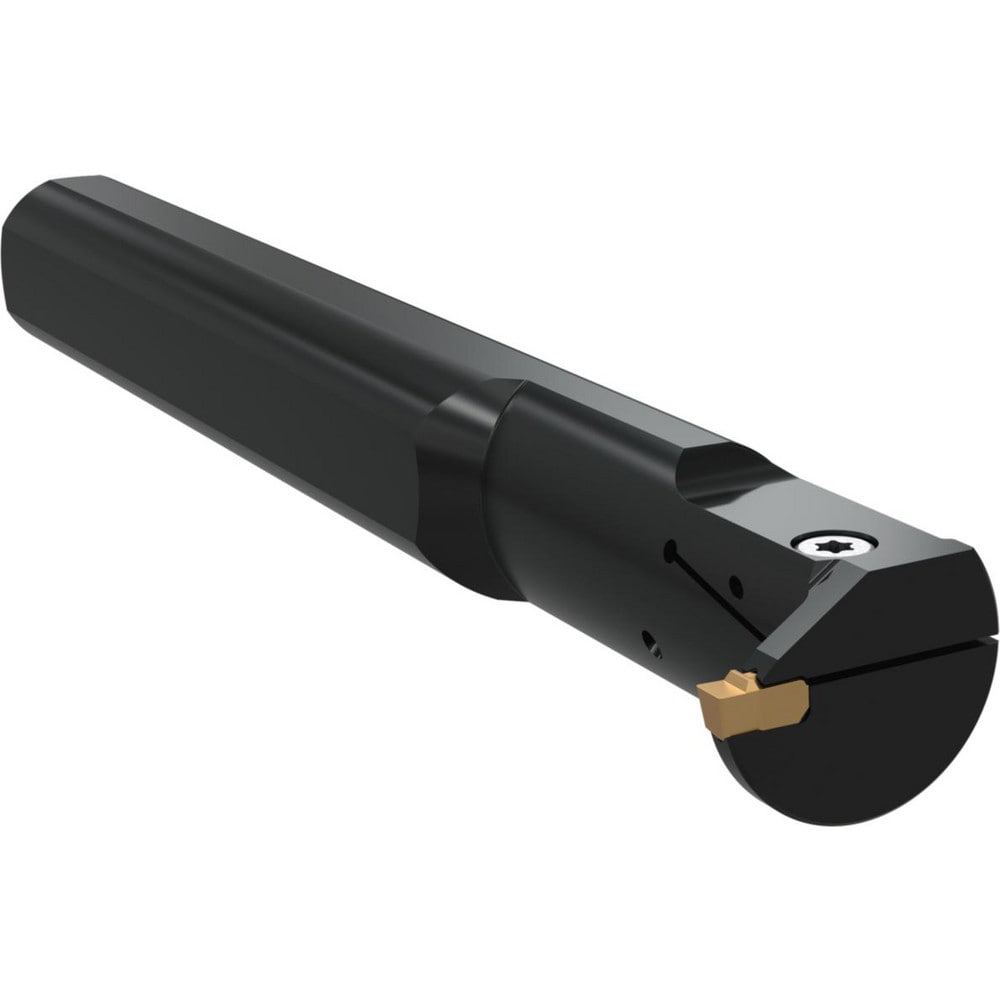

Brand: Widia / Part #: 6949817

Brand: Widia / Part #: 6949817


Item #: 97915748
Brand: Widia
Model #: 6949817

Product Specifications

Internal or External Internal
Toolholder Type Internal Grooving
Insert Seat Size 2
Hand of Holder Left Hand
Cutting Direction Left Hand
Maximum Depth of Cut (Decimal Inch) 0.2756
Minimum Groove Width (Decimal Inch) 0.0787
Toolholder Style WGCEML
Maximum Groove Width (Decimal Inch) 0.0787
Insert Holding Method Clamp
Insert Compatibility WG0200M02P02
Compatible Insert Size Code 2
Shank Width/Diameter (Decimal Inch) 0.7500
Shank Height (Decimal Inch) 5.7670
Series WGC
Shank Length (Decimal Inch) 5.7670
Overall Length (Decimal Inch) 7.0000
Multi-use Tool No
Cutting Tool Application Grooving
Back of Bar to Cutting Edge (Decimal Inch) 0.9250
Center to Cutting Edge (Decimal Inch) 0.5500
Minimum Hole Diameter (Decimal Inch) 0.9843
Head Length (Decimal Inch) 1.5000
Primary Workpiece Material Universal
Vibration Dampening No
Coolant Hole Thread Size 1/8-27 NPT
Coolant Hole Diameter (Decimal Inch) 0.1560
Maximum Bore Depth (Decimal Inch) 1.5000
Mount Type Shank
Manufacturers Catalog Number A12QWGCEML0207I
Toolholder Material Steel
Insert Hand Neutral
Complete Insert Compatibility WG0200M02P02
Minimum Bore Diameter (Decimal Inch) 0.9843
Coolant Through Yes
$ 154.78
