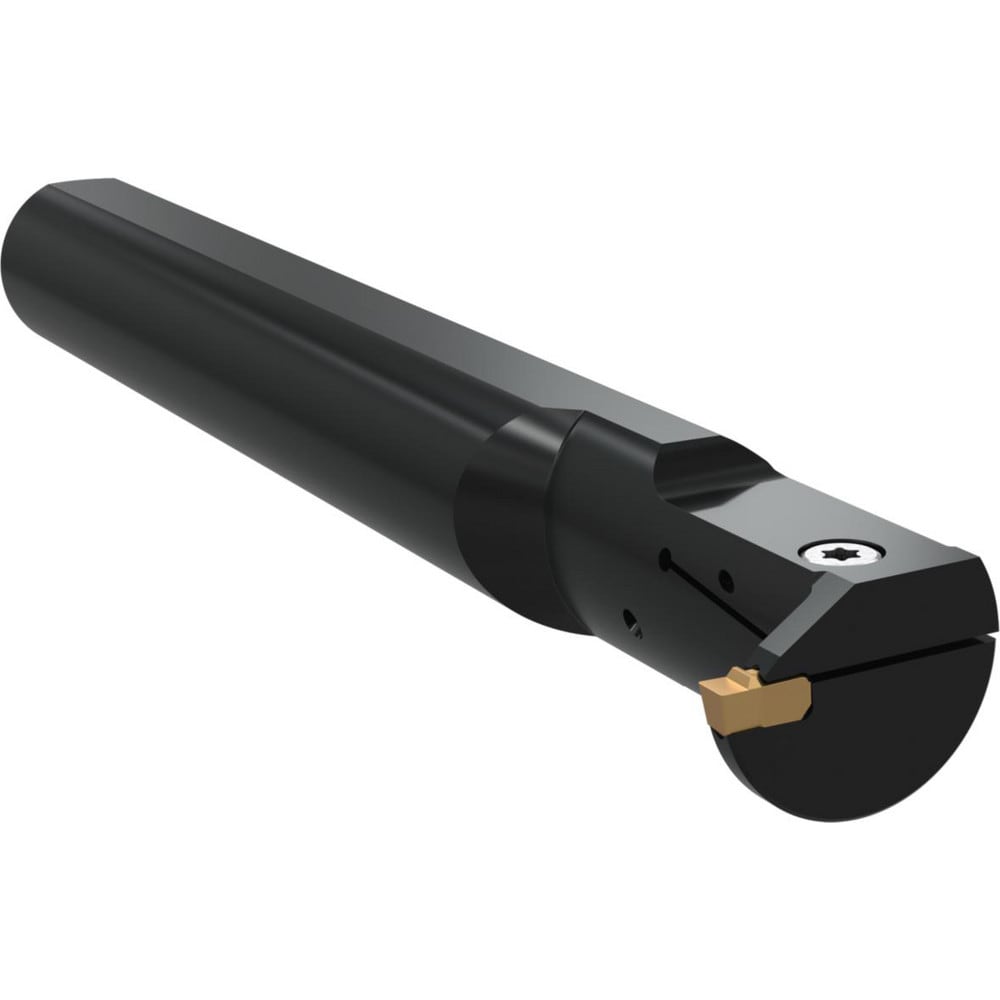

Brand: Widia / Part #: 6948368

Brand: Widia / Part #: 6948368


Item #: 97889521
Brand: Widia
Model #: 6948368

Product Specifications

Internal or External Internal
Toolholder Type Internal Grooving
Insert Seat Size 3
Hand of Holder Left Hand
Cutting Direction Left Hand
Maximum Depth of Cut (mm) 7.00
Minimum Groove Width (mm) 3.00
Maximum Groove Width (mm) 3.00
Toolholder Style WGCEML
Insert Holding Method Clamp
Insert Compatibility WG0300M03P02
Compatible Insert Size Code 3
Shank Width/Diameter (mm) 20.00
Shank Height (mm) 153.20
Series WGC
Shank Length (mm) 153.200
Overall Length (mm) 180.0000
Multi-use Tool No
Cutting Tool Application Grooving
Back of Bar to Cutting Edge (mm) 23.00
Center to Cutting Edge (mm) 13.00
Minimum Hole Diameter (mm) 25.00
Head Length (mm) 40.30
Primary Workpiece Material Universal
Vibration Dampening No
Coolant Hole Diameter (mm) 4.00
Coolant Hole Thread Size 1/8-27 NPT
Mount Type Shank
Manufacturers Catalog Number A20QWGCEML0307M
Toolholder Material Steel
Insert Hand Neutral
Complete Insert Compatibility WG0300M03P02
Coolant Through Yes
Minimum Bore Diameter (mm) 25.000
Maximum Bore Depth (mm) 40.30
$ 154.78
