Brand: Widia / Part #: 3632115
Item #: 99720195
Brand: Widia
Model #: 3632115
Product Specifications

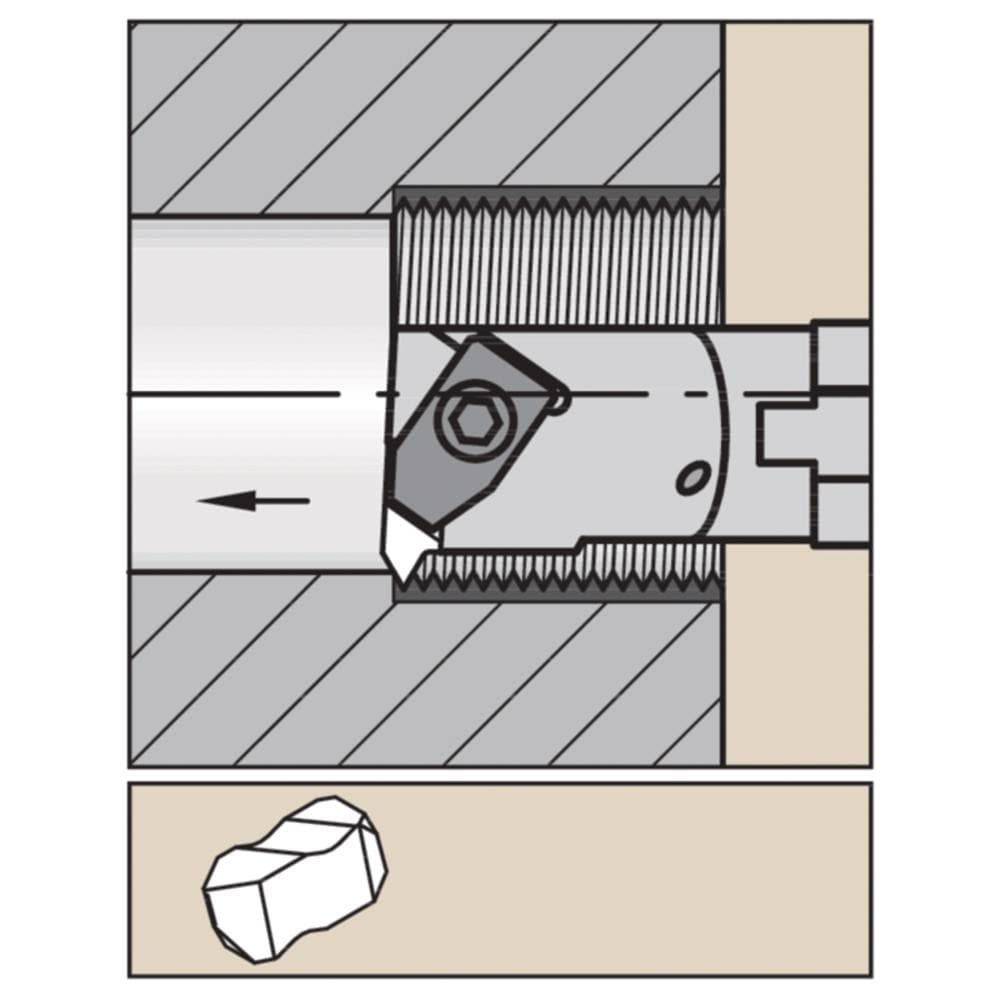

| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | 3 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Toolholder Style | NER |
| Insert Compatibility | N.3L |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Insert Holding Method | Clamp |
| Shank Height (Decimal Inch) | 0.0000 |
| Shank Length (Inch) | 14 |
| Shank Length (Decimal Inch) | 14.0000 |
| Overall Length (Inch) | 14 |
| Overall Length (Decimal Inch) | 14.0000 |
| Minimum Bore Diameter (Decimal Inch) | 2.0000 |
| Series | A-NE |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Chamfering; Threading |
| Maximum Depth of Cut (Decimal Inch) | 0.1875 |
| Adjustable Overhang | Yes |
| Back of Bar to Cutting Edge (Inch) | 1-3/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.7500 |
| Center to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Decimal Inch) | 0.3438 |
| Insert Inscribed Circle (Inch) | 11/32 |
| Insert Inscribed Circle (mm) | 8.73 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Toolholder Material | Steel |
| Insert Thickness (Decimal Inch) | 0.1950 |
| Style | NER |
| Coolant Through | Yes |
