Rotor Clip - 13/16" Bore Diam, Spring Steel Internal Snap Retaining Ring - Exact Tooling

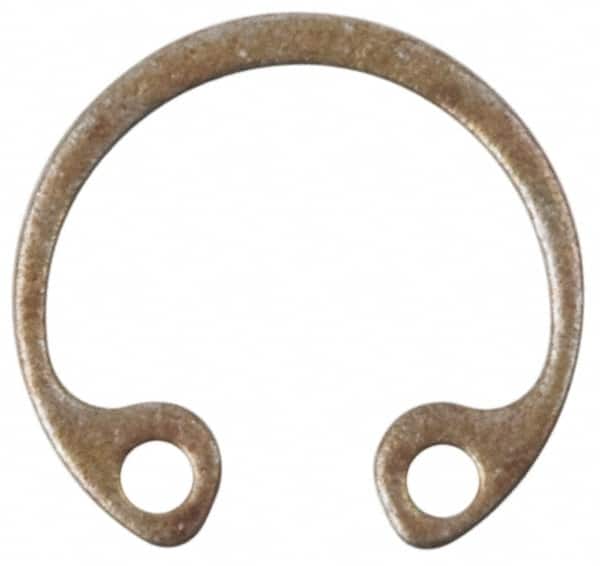

Rotor Clip - 13/16" Bore Diam, Spring Steel Internal Snap Retaining Ring


Item #: 99615809
Brand: Rotor Clip
Model #: HO-81ST PD-B

Product Specifications
Type Snap
Material Spring Steel
System of Measurement Inch
Bore Diameter (Inch) 13/16
Bore Diameter (Decimal Inch) 0.8120
Groove Diameter (Decimal Inch) 0.8620
Groove Width (Decimal Inch) 0.0460
Free Outside Diameter (Decimal Inch) 0.8125
Military Specification Does Not Meet Military Specifications
Ring Thickness (Decimal Inch) 0.0420
Material Grade 1060-1090
Finish/Coating Phosphate
Groove Depth (Decimal Inch) 0.0250
Groove Diameter Tolerance (Decimal Inch) -0.0030 to 0.0040
Groove Width Tolerance (Decimal Inch) 0.000 to 0.003
Ring Thickness Tolerance (Decimal Inch) -0.002 to 0.002
Free Diameter (mm) 20.64
$ 202.91
