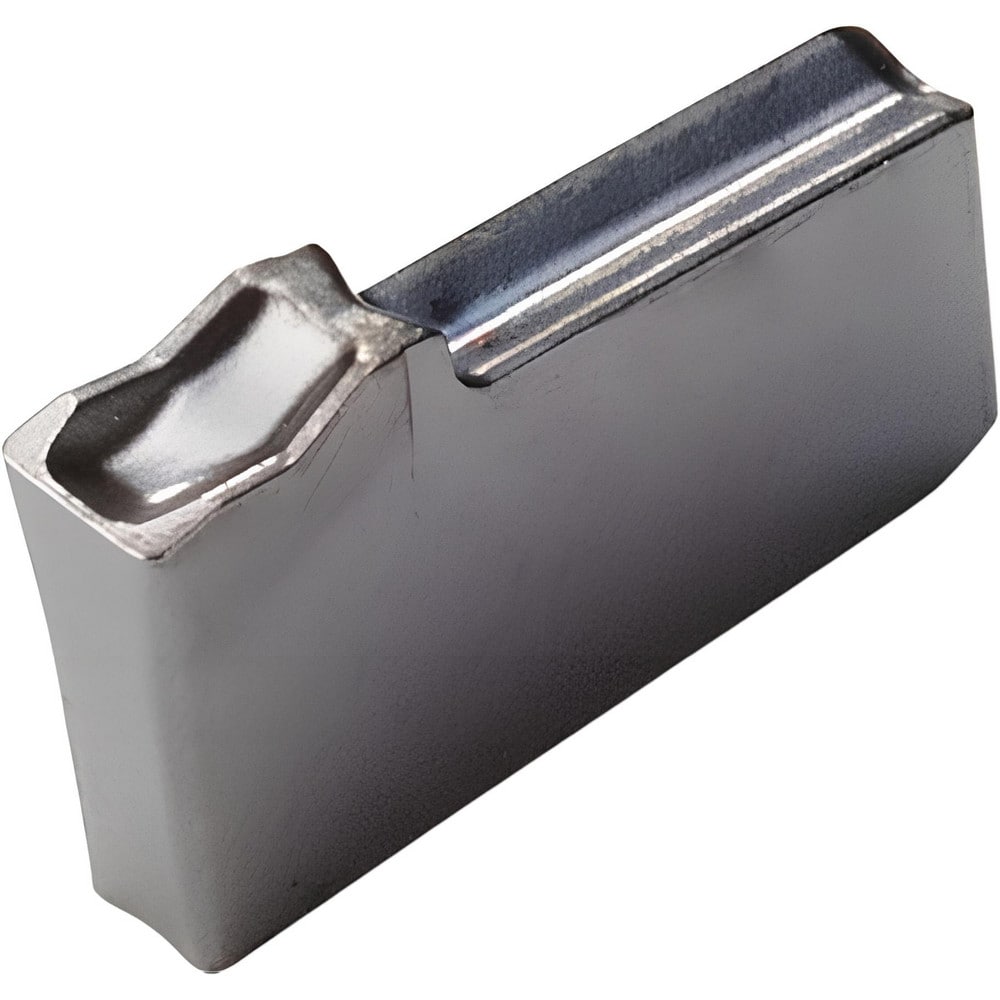

Brand: Ingersoll Cutting Tools / Part #: 6050142
Item #: 48793426
Brand: Ingersoll Cutting Tools
Model #: 6050142
Product Specifications
| Insert Style | TIMC |
| Insert Size Code | 1.6 |
| Insert Size | 1 |
| Insert Material | Carbide |
| Manufacturer Grade | K10 |
| Inscribed Circle (Decimal Inch) | 0.0630 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Insert Hand | Neutral |
| Series | TIMC |
| Coating Process | Uncoated |
| Number Of Cutting Edges | 1 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K; N |
| Ansi Code | TIMC1.6 S K10 |
| Manufacturers Catalog Number | TIMC1.6 S K10 |
| Cutter Series Compatibility | TSC.A |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Rectangle |
| Insert Holding Method | Clamp |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Width (Decimal Inch - 4 Decimals) | 0.0630 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0630 |
| Multi-Use Tool | No |
