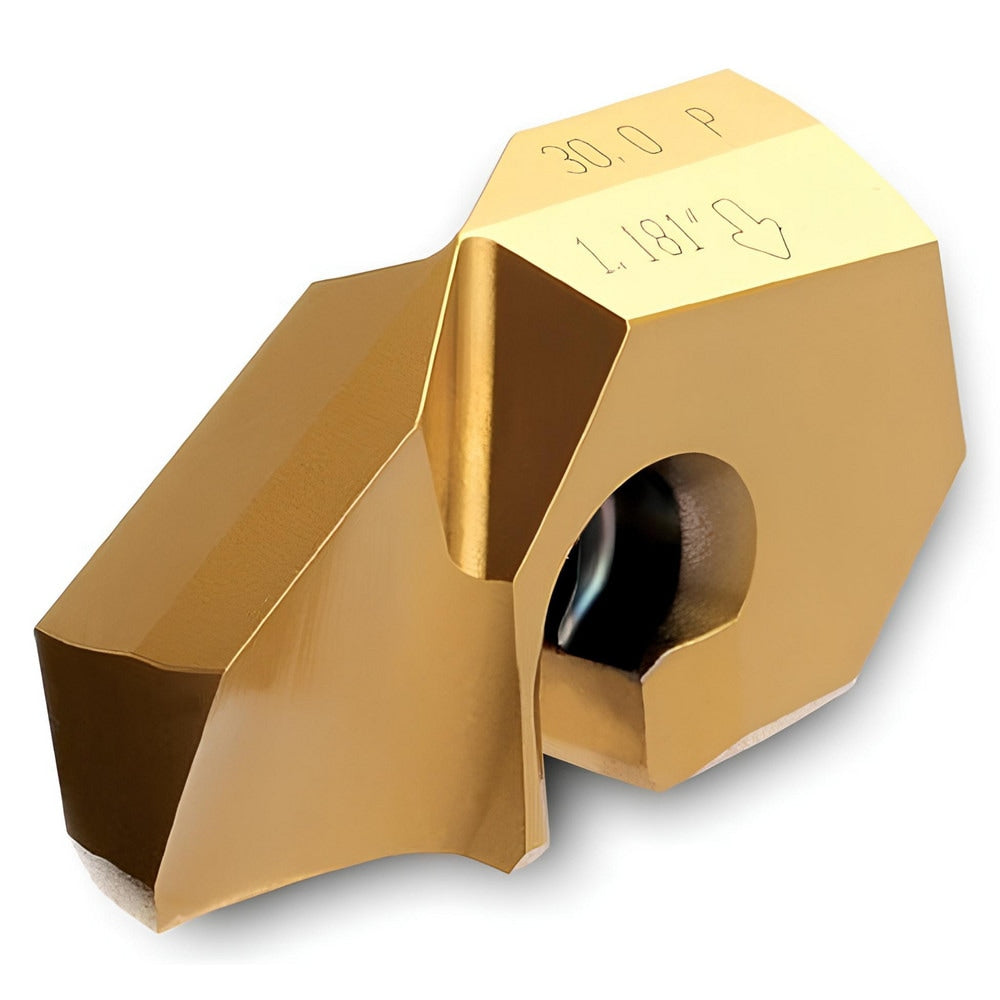

Brand: Ingersoll Cutting Tools / Part #: 4210005
Item #: 95317921
Brand: Ingersoll Cutting Tools
Model #: 4210005
Product Specifications
| Maximum Drill Diameter (mm) | 27.90 |
| Point Angle | 140.00 |
| Diameter (mm) | 27.9000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Cutting Direction | Right Hand |
| Series | LPA |
| Coating Process | PVD |
| Insert Seat Size | 27 |
| Primary Workpiece Material | Hi Temp Alloys; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Height (mm) | 11.5600 |
| Head Length (mm) | 11.56 |
| Cutting Diameter (mm) | 27.90 |
| Insert Holding Method | Twist |
| ISO Number | LPA2790R01 IN2505 |
| Coolant Through | Yes |
| Flute Length (mm) | 7.16 |
| Point Type | Flat Bottom |
| Overall Length/Projection (mm) | 11.56 |
| Style | LPA |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
