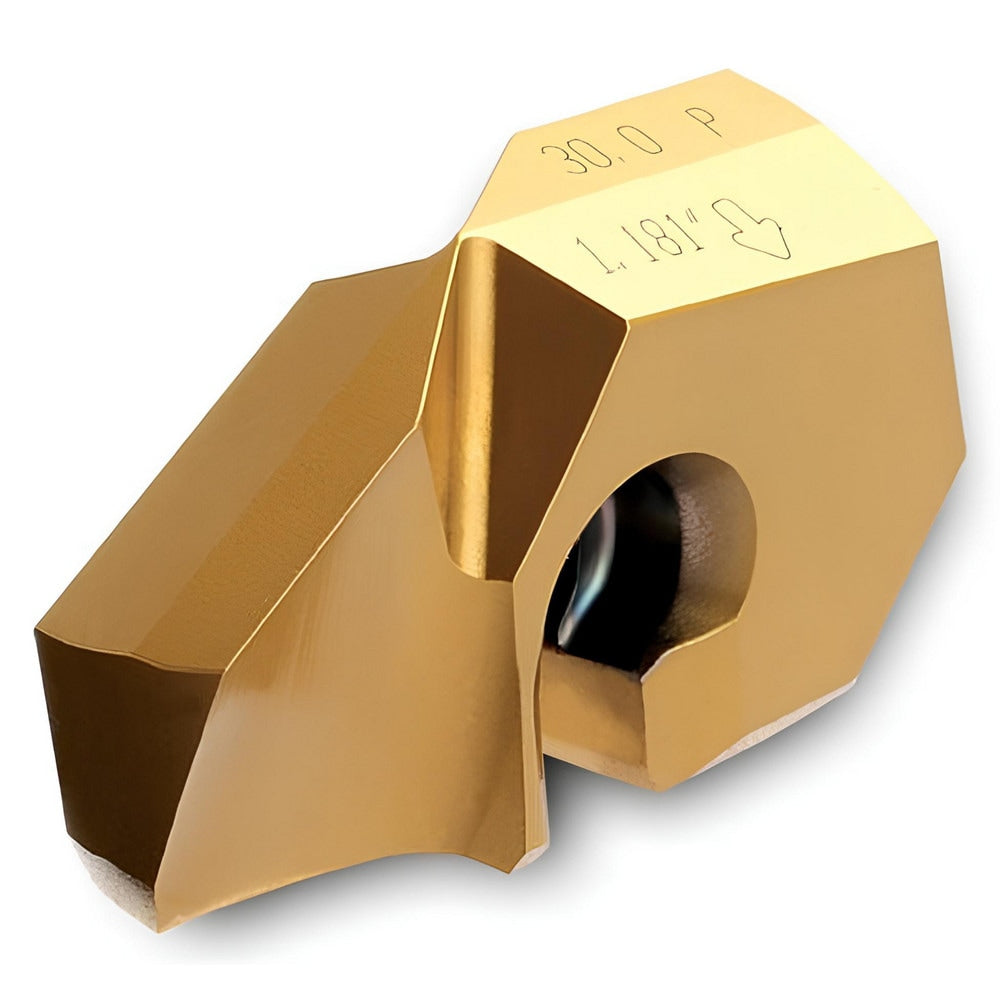

Brand: Ingersoll Cutting Tools / Part #: 6199656
Item #: 96311204
Brand: Ingersoll Cutting Tools
Model #: 6199656
Product Specifications
| Maximum Drill Diameter (mm) | 24.50 |
| Point Angle | 140.00 |
| Diameter (mm) | 24.5000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Cutting Direction | Right Hand |
| Series | LPA |
| Coating Process | PVD |
| Insert Seat Size | 24 |
| Primary Workpiece Material | Hi Temp Alloys; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Height (mm) | 10.7700 |
| Head Length (mm) | 10.77 |
| Cutting Diameter (mm) | 24.50 |
| Insert Holding Method | Twist |
| ISO Number | LPA2450R01 IN2505 |
| Coolant Through | Yes |
| Flute Length (mm) | 6.93 |
| Point Type | Flat Bottom |
| Overall Length/Projection (mm) | 10.77 |
| Style | LPA |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
