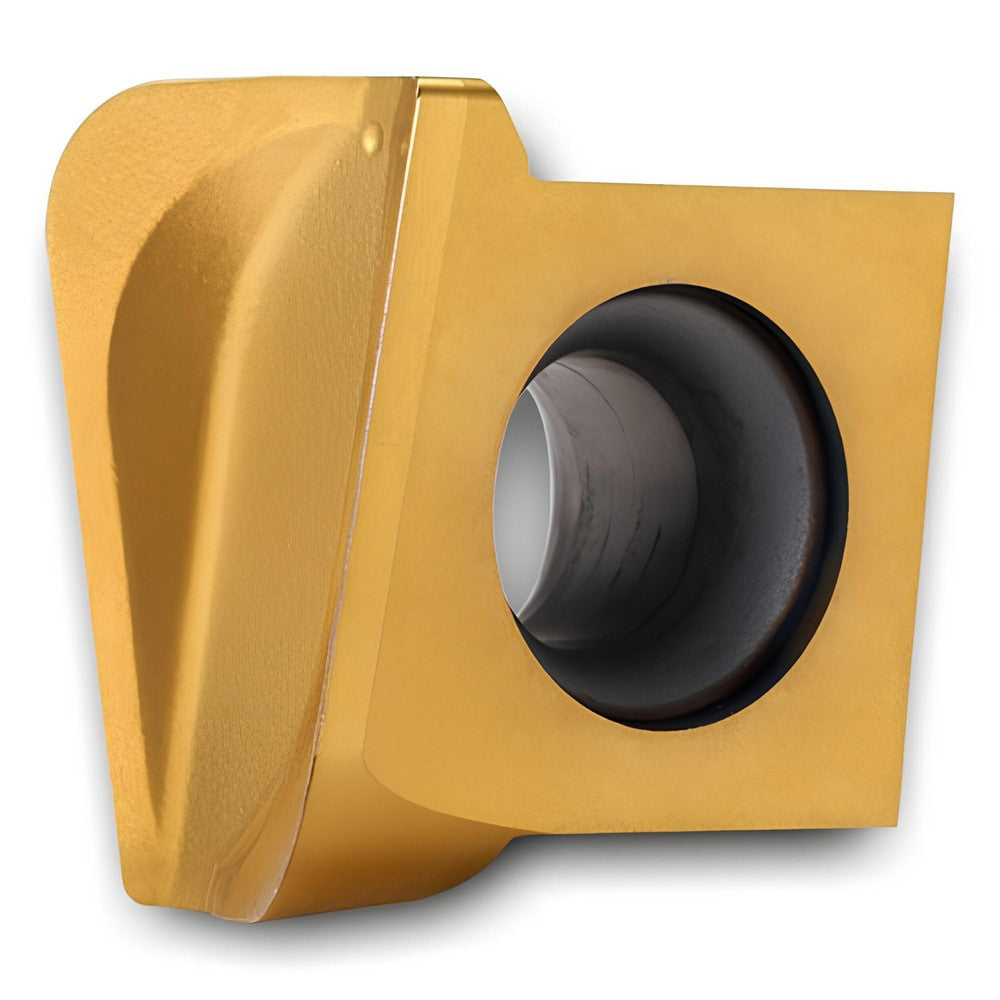

Brand: Ingersoll Cutting Tools / Part #: 2922933
Item #: 67321091
Brand: Ingersoll Cutting Tools
Model #: 2922933
Product Specifications
| Insert Style | IPM |
| Insert Size Code | 426 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2535 |
| Thickness (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.5950 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Insert Hand | Right Hand |
| Series | IPM |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.6170 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | IPM426R001-ML K |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | IPM426R001-ML K IN2535 |
| Cutter Series Compatibility | 2XJ3J |
| Chip Breaker | ML |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 15.6700 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlTiN; TiN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5950 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6170 |
