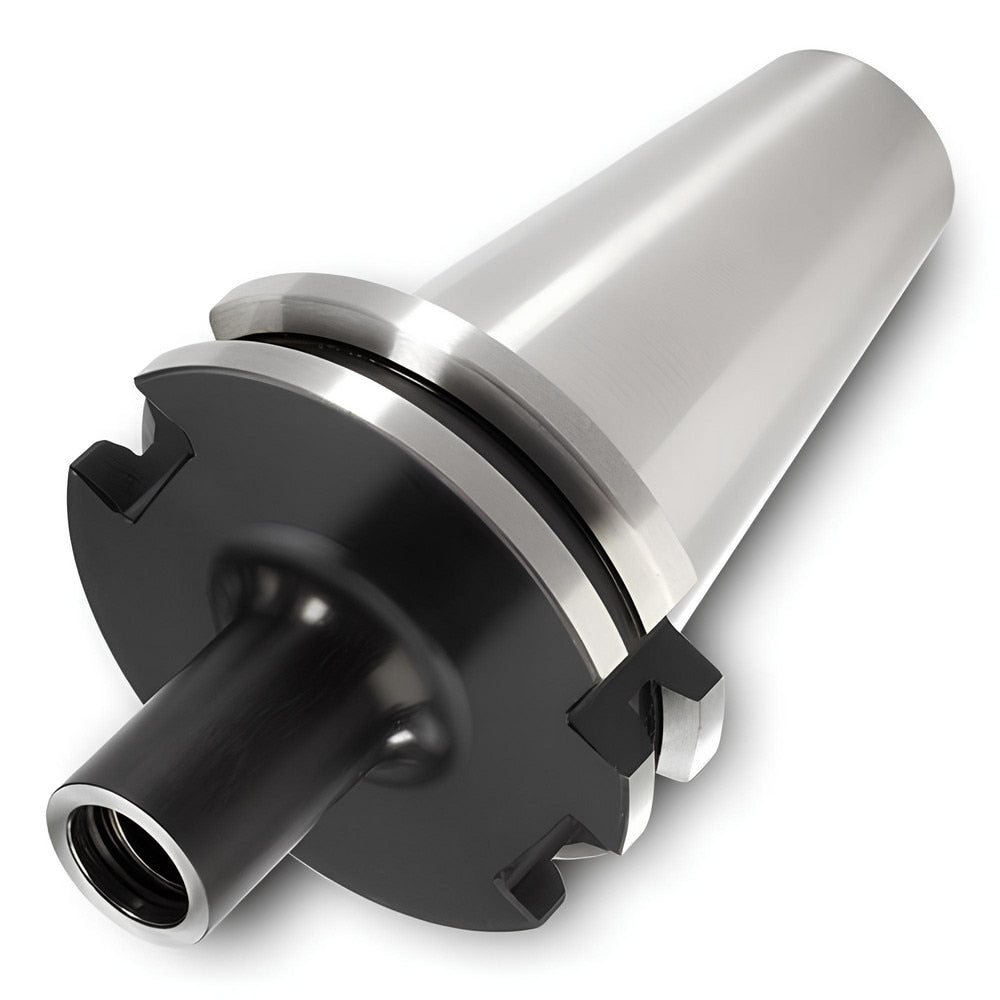

Brand: Ingersoll Cutting Tools / Part #: 2927922
Item #: 08136467
Brand: Ingersoll Cutting Tools
Model #: 2927922
Product Specifications
| Projection (mm) | 40.000 |
| Overall Length (mm) | 108.4000 |
| Neck Diameter (mm) | 0.000 |
| Neck Thread Size | T08 |
| Shank Type | Taper |
| Shank Taper Size | DIN40 |
| Nose Diameter (Mm) ( - 2 Decimals) | 9.55 |
| Toolholder Style | DIN69871*T |
| Tool Material | Steel |
| Series | DIN69871*T |
| Tip Connection Size | T06 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | No |
| Effective Length (mm) | 15.00 |
| Extension Length (mm) | 21.00 |
| Shank Shape | Round |
| Thread Size Connection to Tip | T06 |
| Manufacturers Catalog Number | DIN6987140T06X40 |
| Type | "T" Style Thread Connection |
| Coolant Through | Yes |
