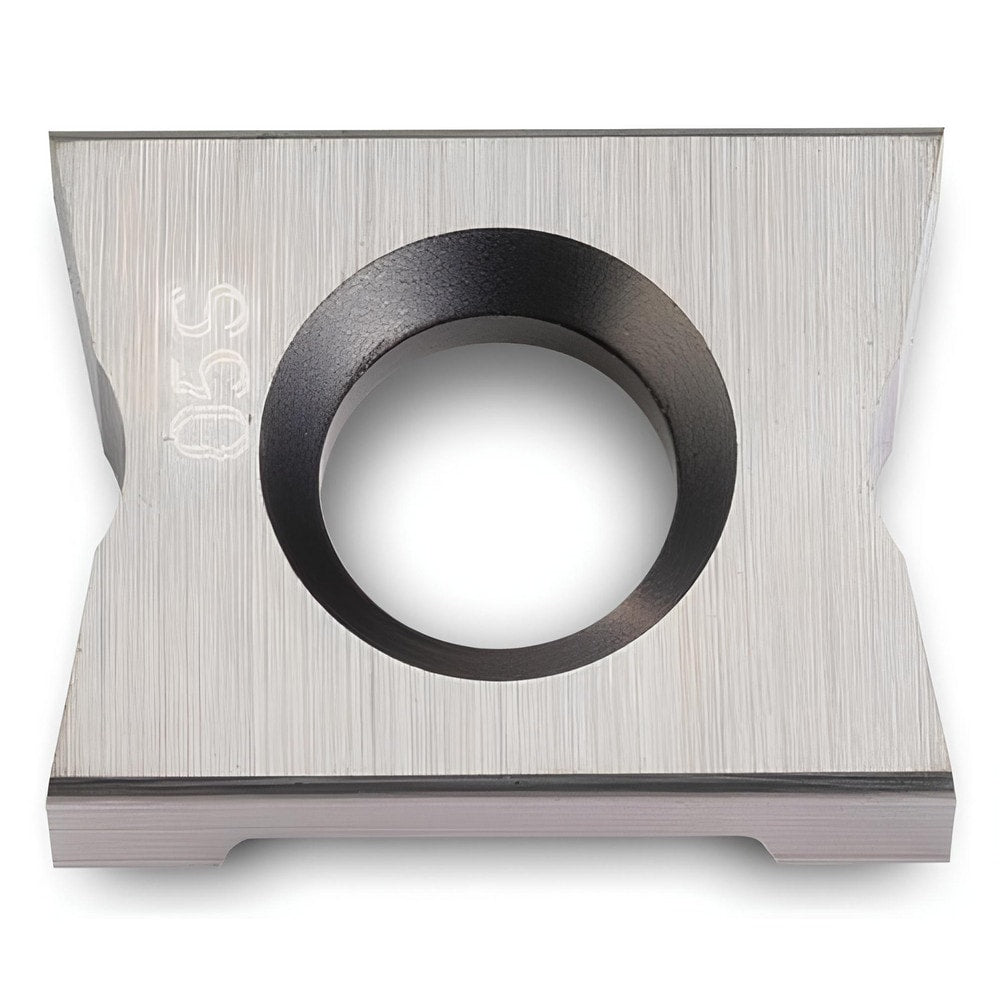

Brand: Ingersoll Cutting Tools / Part #: 2914737
Item #: 29934742
Brand: Ingersoll Cutting Tools
Model #: 2914737
Product Specifications
| Insert Style | IXH |
| Insert Size Code | 312 |
| Insert Material | Carbide |
| Manufacturer Grade | IN05S |
| Inscribed Circle (Decimal Inch) | 0.4400 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Neutral |
| Series | IXH |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | IXH312-G01-P S |
| Manufacturers Catalog Number | IXH312-G01-P S IN05S |
| Cutter Series Compatibility | 3VJ4V |
| Chip Breaker | P |
| Cutting Direction | Neutral |
| Shape | Rectangle |
| Length of Cut (mm) | 8.8900 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4400 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1130 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.3500 |
