Brand: Widia / Part #: 2951418
Item #: 02773471
Brand: Widia
Model #: 2951418
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.7600 |
| Maximum Bore Depth (Decimal Inch) | 4.5000 |
| Toolholder Style | SCLCR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | CC..432 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | -4.000 |
| Lead Angle | -5.000 |
| Series | A-SCLC |
| Insert Inscribed Circle (Inch) | 1/2 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | Yes |

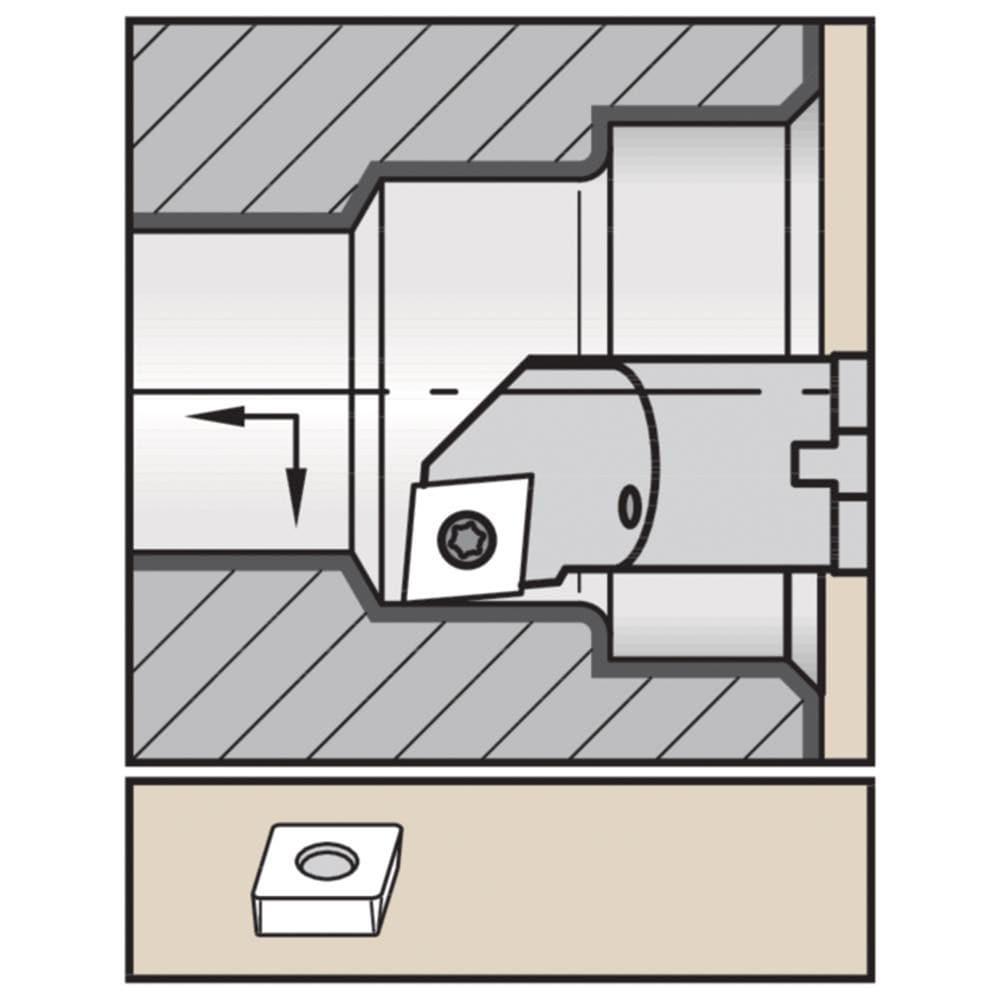

| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.6400 |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | A24USCLCR4 |
| Radial Rake | 0 |
| Coolant Through | Yes |
