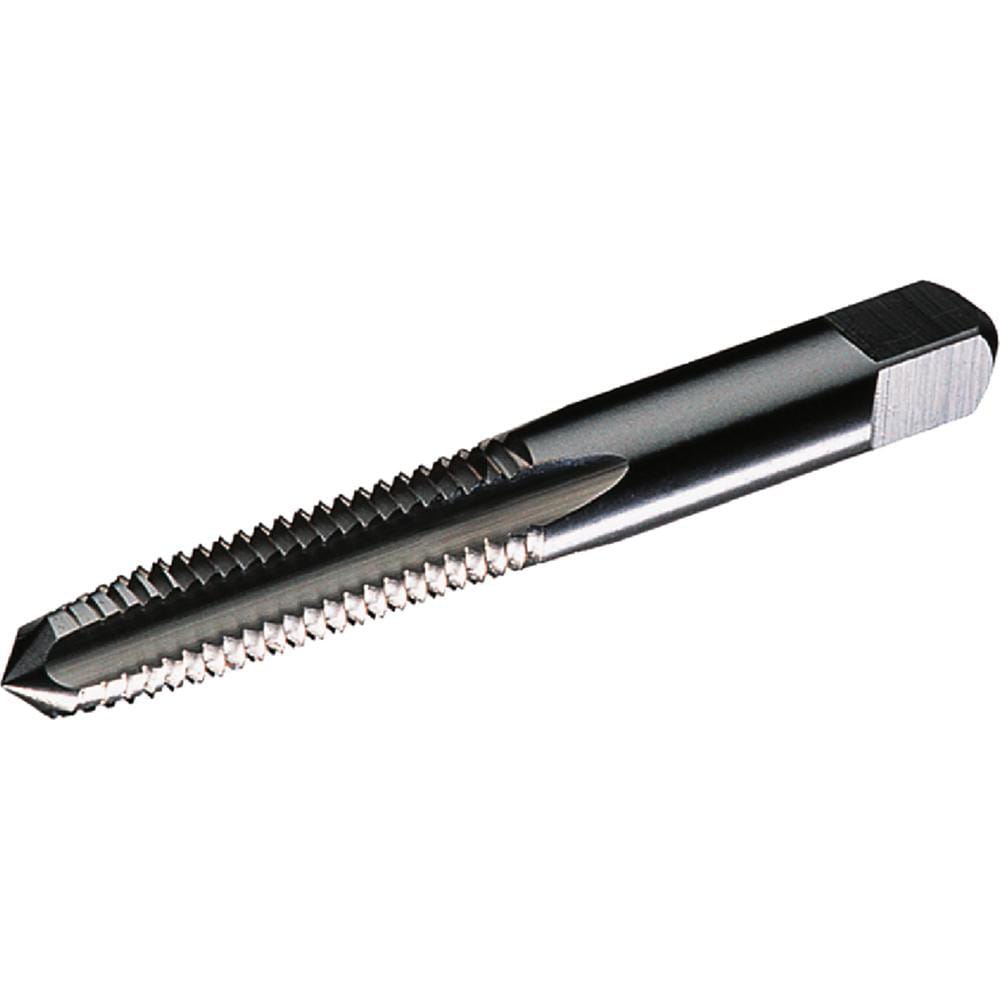

Brand: Widia / Part #: 2748666
Item #: 08725434
Brand: Widia
Model #: 2748666
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | #10-32 |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 32 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNF |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Overall Length (Decimal Inch) | 2.3750 |
| Thread Length (Decimal Inch) | 0.8750 |
| Thread Depth (Decimal Inch) | 0.8750 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Length (mm) | 6.35 |
| Square Size (Decimal Inch) | 0.1520 |
| Series | 5305 |
| Shank Length (Decimal Inch) | 1.5000 |
