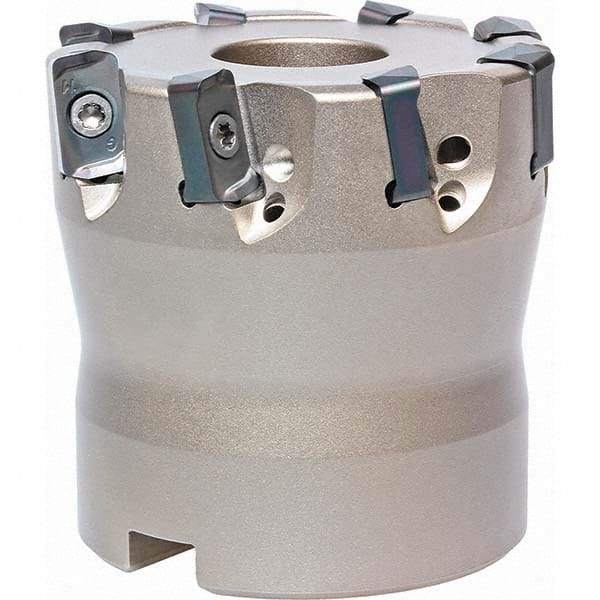

Kyocera - Indexable High-Feed Face Mills Cutting Diameter (Decimal Inch): 1.5748 Cutting Diameter (mm): 40.00 - Exact Tooling

Kyocera - Indexable High-Feed Face Mills Cutting Diameter (Decimal Inch): 1.5748 Cutting Diameter (mm): 40.00


Item #: 10625747
Brand: Kyocera
Model #: 8860915

Product Specifications

Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.5748 ; Cutting Diameter (mm): 40.00 ; Maximum Depth of Cut (mm): 1.00 ; Arbor Hole Diameter (mm): 16.00 ; Overall Height (mm): 40.00 ; Series: MFH-Raptor
Cutting Diameter (Decimal Inch) 1.5748
Cutting Diameter (mm) 40.00
Maximum Depth of Cut (mm) 1.00
Arbor Hole Diameter (mm) 16.00
Overall Height (mm) 40.00
Series MFH-Raptor
Cutter Style MFH
Number of Cutter Inserts 6
Insert Compatibility LOGU 03
Cutting Direction Right Hand
Insert Holding Method Clamp
Maximum RPM 9900
Number of Flutes 6
Through Coolant Yes
Complete Insert Compatibility LOGU030310ER-GM
Keyway Width (mm) 8.40
Manufacturers Catalog Number MFH 040R-03-6T-M
$ 473.67
