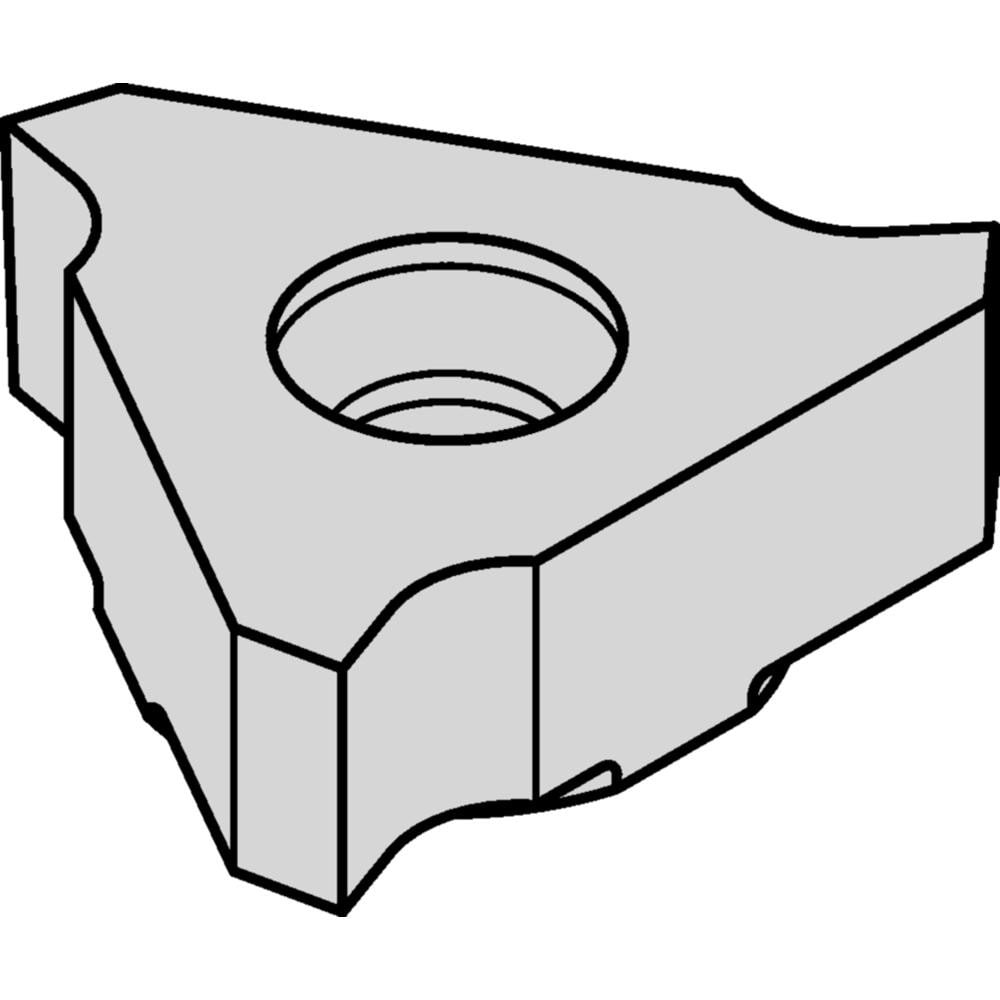

Brand: Widia / Part #: 2014041
Item #: 94467842
Brand: Widia
Model #: 2014041
Product Specifications
| Insert Style | TCAX |
| Insert Size Code | 1103 |
| Insert Size | 11 |
| Insert Material | Carbide |
| Manufacturer Grade | TTM08 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Right Hand |
| Series | M94 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | TCAX1103ZZ18 |
| Iso Code | TCAX1103ZZ18 |
| Manufacturers Catalog Number | TCAX1103ZZ18 |
| Cutter Series Compatibility | M94 TC1103 IN |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Triangle |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 60 |
| Length | 11.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Width (Mm - 2 Decimals) | 11.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1260 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4331 |
