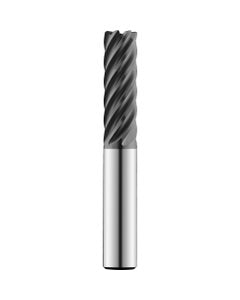

77224 5/8 7FL .030R EM
Item #: DD9277224
Brand: KYOCERA SGS Precision Tools
Model #: 77224
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 1-7/8″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 4″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 7 |
| Series/List # | 77C |
| Flute Helix Angle (FHA) | 37 Degrees |
| Shank Size (SS) | 5/8″ |
| Shank Type | Round |
| Shank Length (LS) | 2-1/8″ |
| End Shape | Corner Radius |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Usable Length (LU) | 1-7/8″ |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Single / Double End | Single End |
