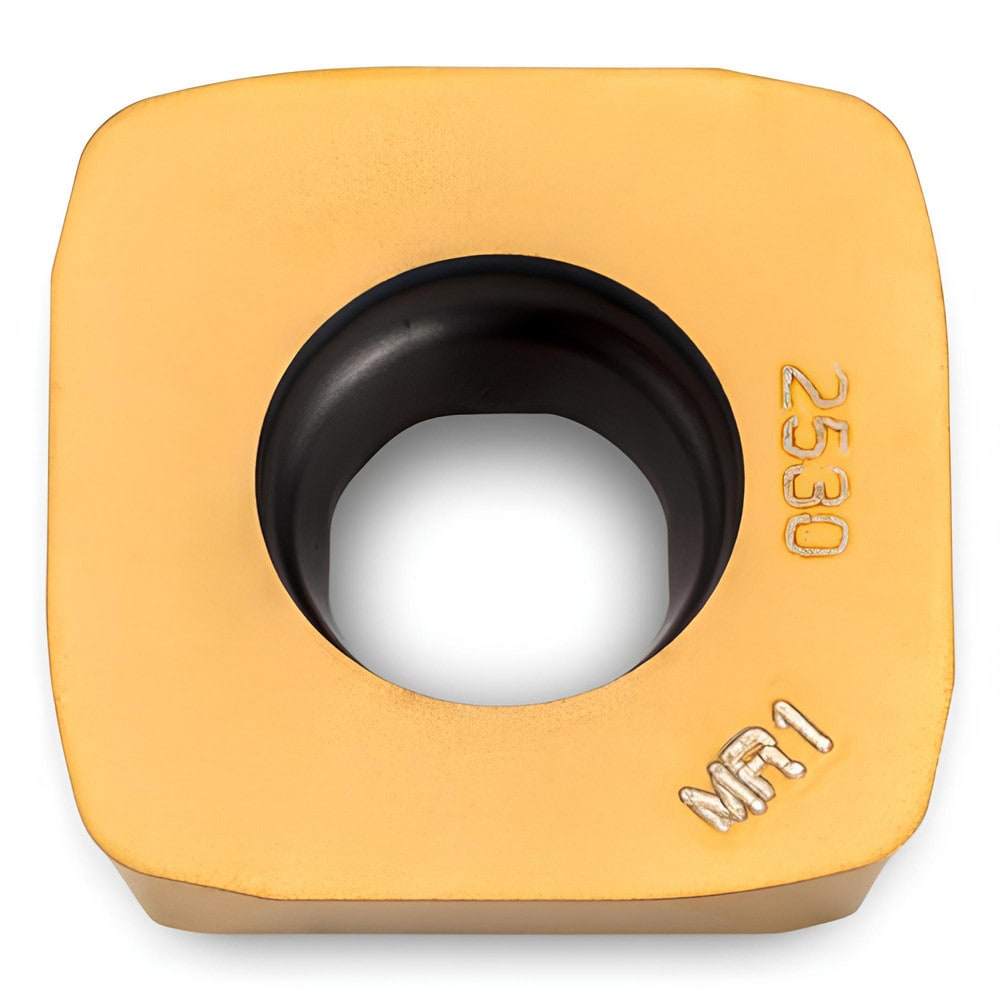

Brand: Ingersoll Cutting Tools / Part #: 2923877
Item #: 67302190
Brand: Ingersoll Cutting Tools
Model #: 2923877
Product Specifications
| Insert Style | SDXS |
| Insert Size Code | 1605 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2535 |
| Inscribed Circle (mm) | 16.00 |
| Corner Radius (Decimal Inch) | 0.2100 |
| Insert Hand | Right Hand |
| Series | SDXS |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 8.00 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | SDXS1605MPR-MR1 J |
| Rake Angle | 15.000 |
| Manufacturers Catalog Number | SDXS1605MPR-MR1 J IN2535 |
| Cutter Series Compatibility | 5G6Q; 5G5Q |
| Chip Breaker | MR1 |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlTiN; TiN |
| Included Angle Degree | 90 |
| Length | 16.00 |
| Width (Mm - 2 Decimals) | 16.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2200 |
| Multi-Use Tool | No |
