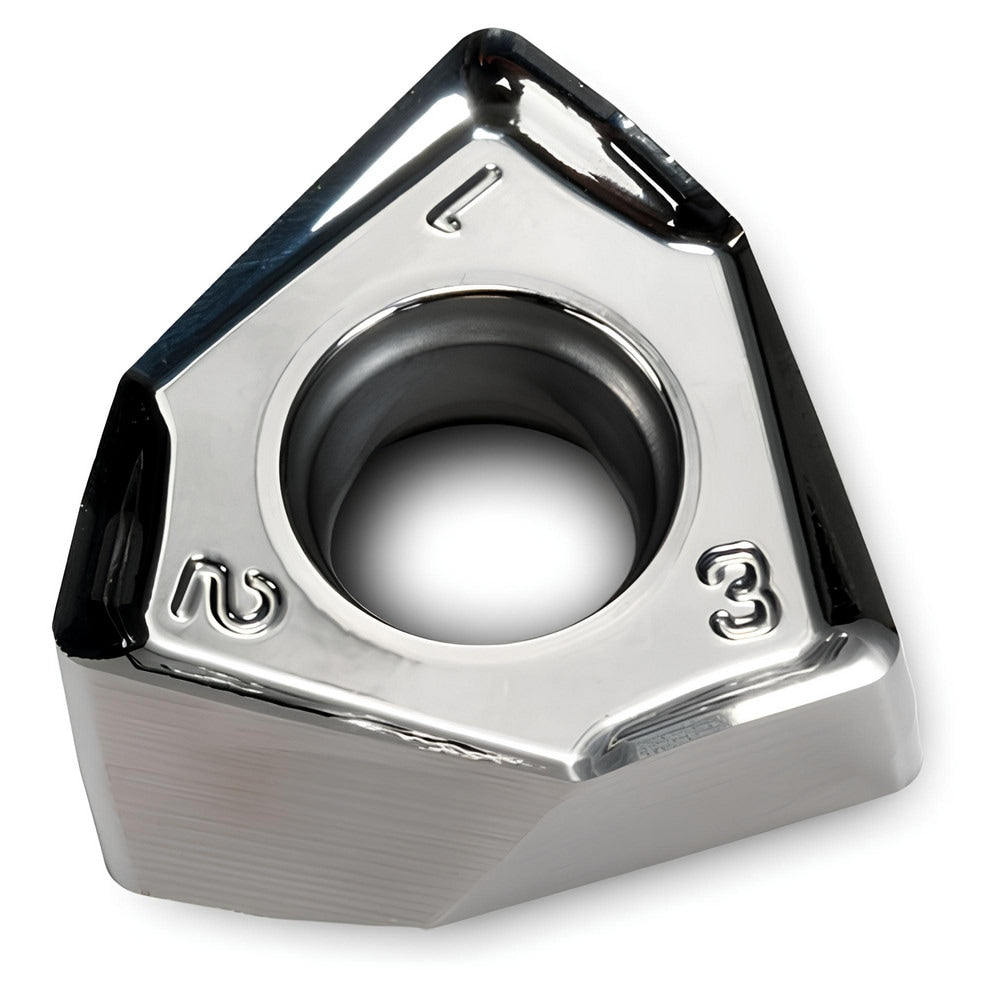

Brand: Ingersoll Cutting Tools / Part #: 5810618
Item #: 67303198
Brand: Ingersoll Cutting Tools
Model #: 5810618
Product Specifications
| Insert Style | WNGU |
| Insert Size Code | 130604 |
| Insert Material | Carbide |
| Manufacturer Grade | IN10K |
| Thickness (Inch) | 17/64 |
| Inscribed Circle (Decimal Inch) | 0.5140 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | WNGU |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.3600 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Trigon |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | WNGU130604FR-P |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | WNGU130604FR-P IN10K |
| Cutter Series Compatibility | DJ6P; DJ5P; 1DJ1P |
| Chip Breaker | P |
| Cutting Direction | Right Hand |
| Shape | Trigon |
| Length of Cut (mm) | 9.1400 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Multi-Use Tool | No |
