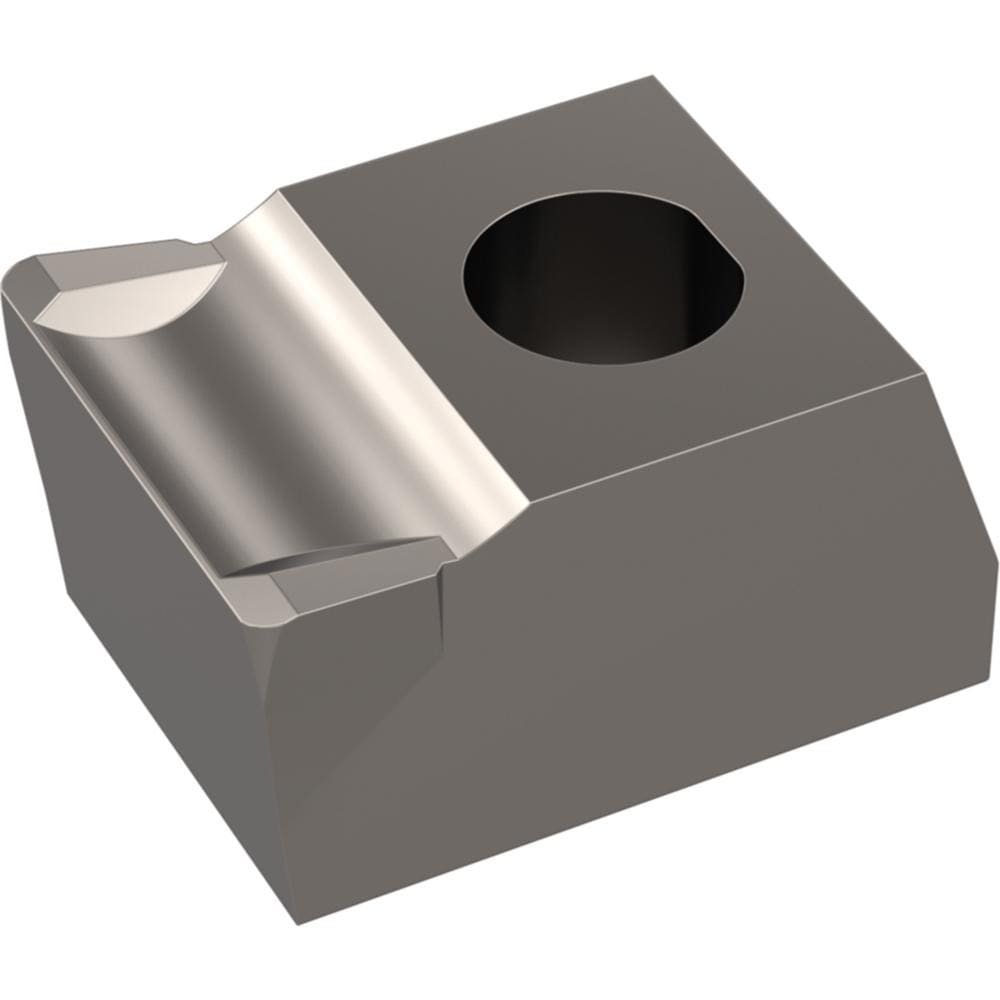

Brand: Widia / Part #: 2021793
Item #: 94371937
Brand: Widia
Model #: 2021793
Product Specifications
| Insert Style | LGN0 |
| Insert Size Code | 12 |
| Insert Size | 12 |
| Insert Material | Carbide |
| Manufacturer Grade | TTM09 |
| Cutting Width (Decimal Inch) | 0.4803 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (Inch) | 1/32 |
| Lead Angle | 7.000 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Series | LGN0 |
| Coating Process | Uncoated |
| Overall Length (Decimal Inch) | 0.6560 |
| Overall Length (Inch) | 21/32 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | 123568120 |
| Iso Code | 123568120 |
| Relief Angle | 7 |
| Maximum Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturers Catalog Number | 123568120 |
| Minimum Groove Width (mm) | 12.20 |
| Type | LG Grooving |
| Maximum Groove Width (mm) | 12.20 |
| Minimum Insert Width (mm) | 11.00 |
| Chip Breaker | LGN0 |
| Insert Seat Size | 12 |
| Style | LG Grooving |
| Full Radius | No |
| Coating Classification | Uncoated |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Coating/Finish | Uncoated |
| Number Of Cutting Edges | 1 |
| Single Or Double End | Single |
| Groove Width (mm) | 12.20 |
| For Use With | Grooving; Turning |
